Compaq PORTABLE 386 User Manual

CAUTION

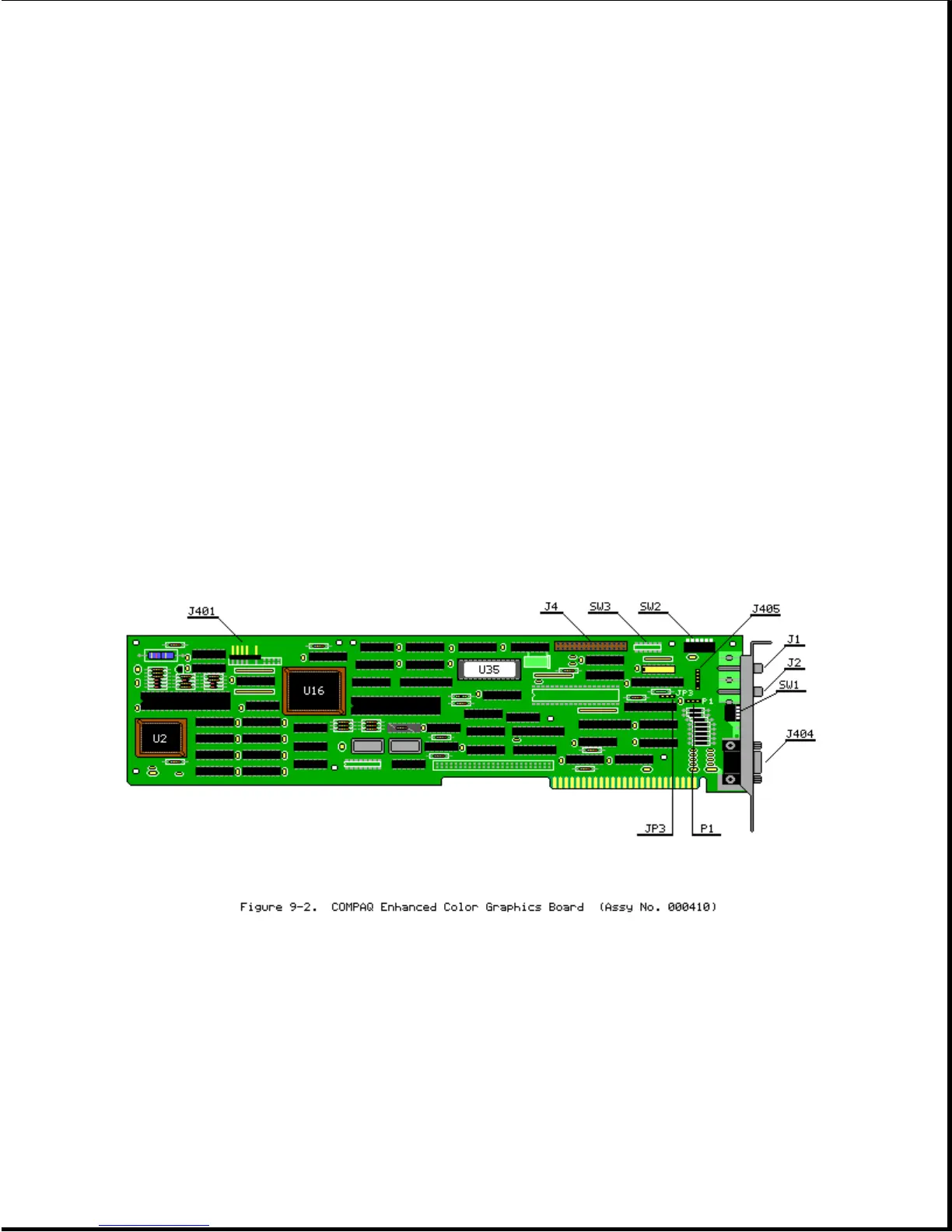

Use care when setting the configuration switches on the COMPAQ Enhanced Color
Graphics Board. Many of the components on the board are sensitive to static
electricity. Be sure that you are discharged of static electricity by briefly
touching a metal object.
Also, the correct setting of the configuration switches is vital to the
operation of the COMPAQ Enhanced Color Graphics Board. Be sure that you set
them correctly for your computer system before installing the board.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
NOTE: When using a COMPAQ Enhanced Color Graphics Board with a COMPAQ
PORTABLE 386 Personal Computer, you must:
1. Use MODE.COM Version 3.2 or later. Type MODE at the DOS prompt to
determine the MODE.COM Version.
2. Connect pin 2 to pin 3 of jumper E23 on the system board.
