Compaq PORTABLE 386 User Manual

Chapter 9.7 ESDI External Fixed Disk Drive Controller Board
Switch settings for the 1:1 Interleave Buffered ESDI External Fixed Disk Drive

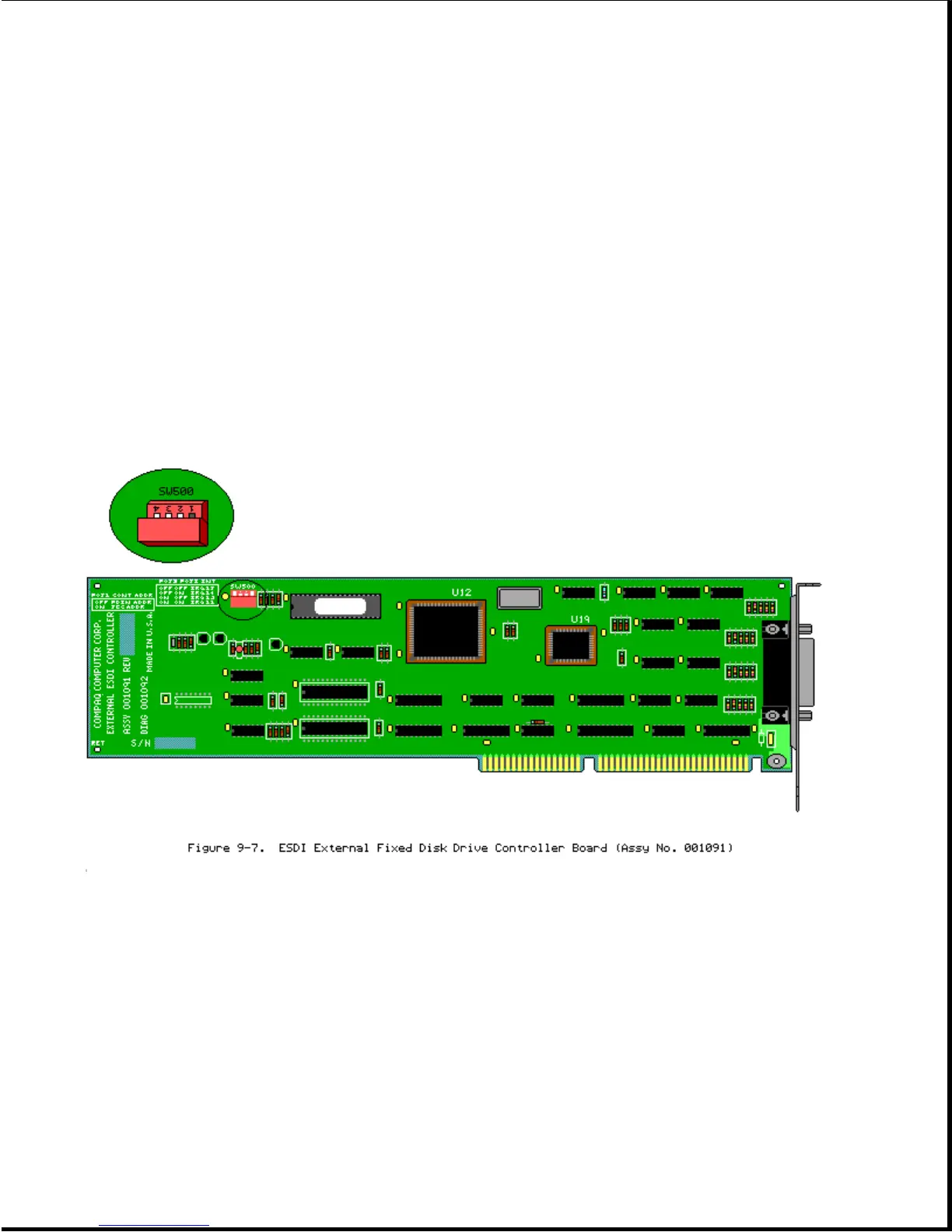

Controller Board are listed in Table 9-17. The board is shown in Figure 9-7.
Table 9-17. 1:1 Interleave Buffered ESDI External Fixed Disk Drive Controller
Board (Assy No. 001091)
==============================================================================
Switch Setting Status Function
------------------------------------------------------------------------------
1 ON Secondary Address Selects controller address.
2 OFF (default) Primary Address
------------------------------------------------------------------------------
2 and 3 OFF/OFF IRQ15 Selected Selects power up default
ON/OFF IRQ14 Selected interrupt for the board.
OFF/ON IRQ12 Selected
ON/ON IRQ11 Selected
==============================================================================
