1. Complete the preparation procedure (see Section 8.2).
2. Remove the rear panel (see Section 8.4).
3. Remove the 32 bit memory/modem interface board (see Section 8.8).
4. Remove the 1 to 2 megabyte memory expansion board (see Section 8.11).

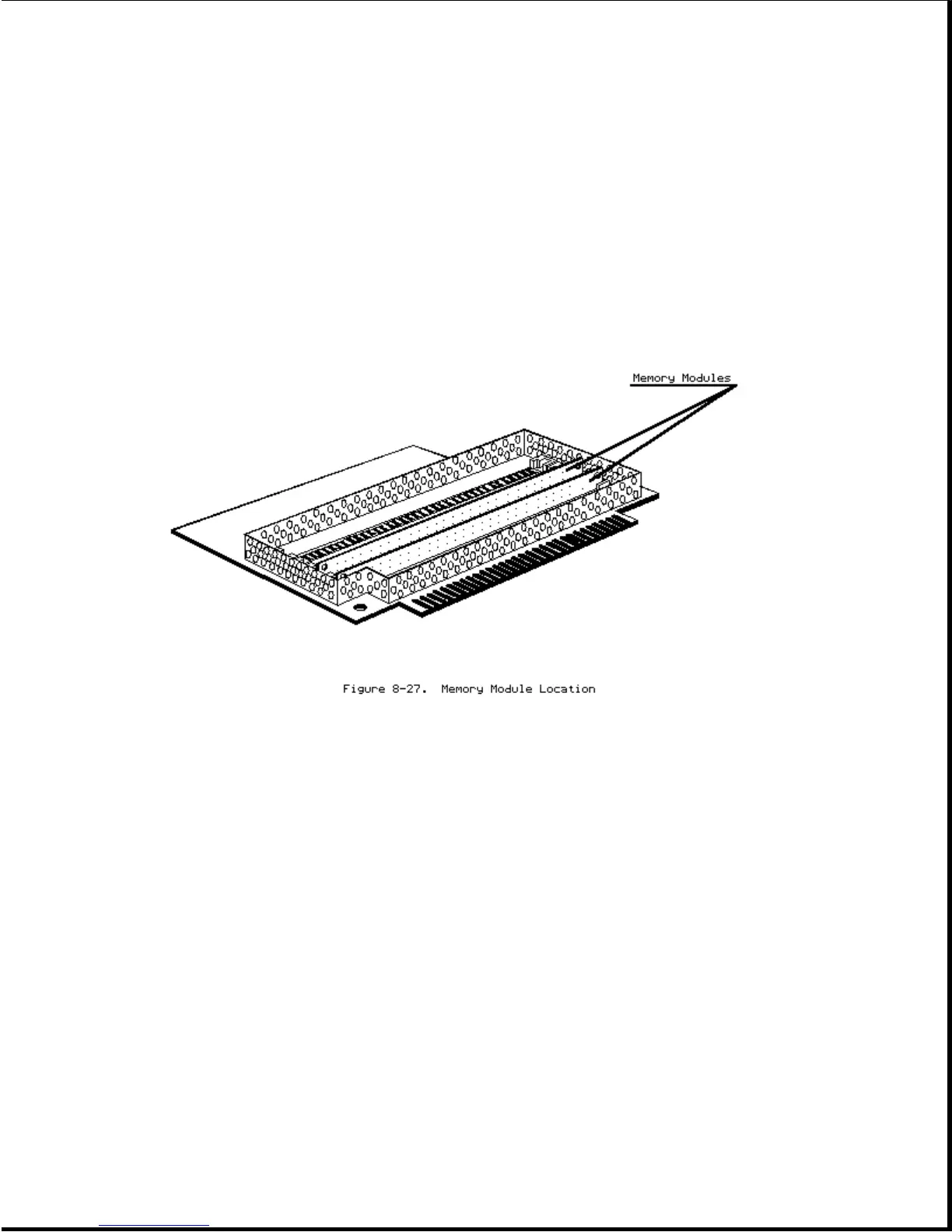

5. Locate the memory module that is to be replaced (Figure 8-27).
6. To release the module, insert a tool, such as a ball point pen, into the
hole at one end of the module.
7. Grasp the end of the module, pull up, and "peel" it away from its socket
(Figure 8-28).
