NOTE: The following jumper settings are reserved:
E12, Pins 1 and 2
E18, Pins 2 and 3
E22, Pins 2 and 3
E24, Pins 1 and 2
E25, Pins 1 and 2

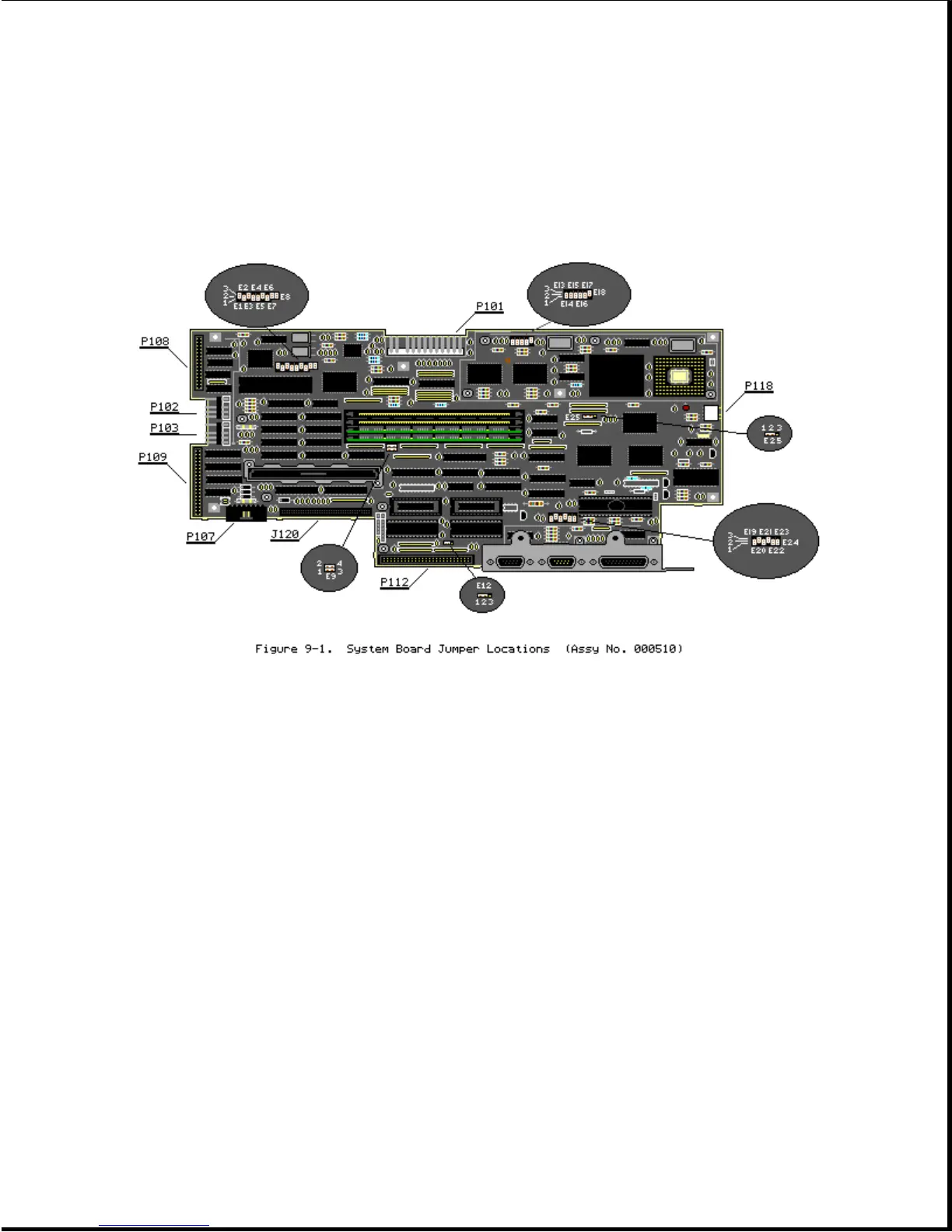

Figure 9-1 shows the jumper locations on the COMPAQ PORTABLE 386 system board.
Chapter 9.3 System Board Jumper Settings
Refer to Figure 9-1 for the system board jumper locations. Use Tables 9-1
through 9-9 as references for setting each jumper.
NOTE: Refer to the configuration label, located on the inside of the
computers rear panel, for the default jumper settings and locations.
Table 9-1. Jumpers E1, E2, and E7 - Select Parallel Port Options
==============================================================================
Jumper Setting Function
------------------------------------------------------------------------------
E1, Pins 2 and 3 Select first port address (3BX) (default)
E2, Pins 1 and 2 LPT1 (default)
E1, Pins 1 and 2 Select second port address (37X)
E2, Pins 2 and 3 LPT2
E1, Pins 1 and 2 Select third port address (27X)
E2, Pins 1 and 2 LPT3
E1, Pins 2 and 3 Disable internal parallel port
E2, Pins 2 and 3
