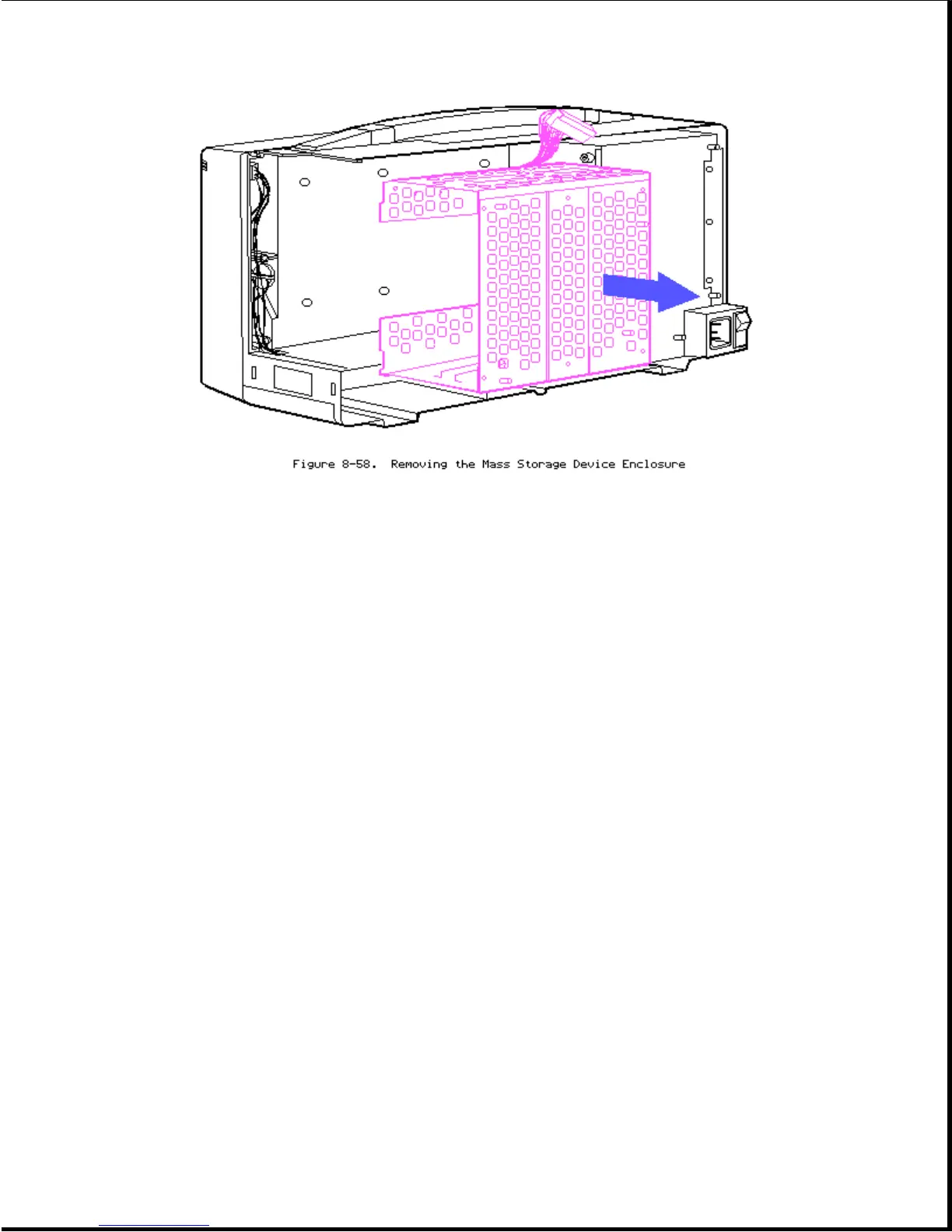

To replace the mass storage device enclosure, reverse steps 1 through 10.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
CAUTION
Be sure the LED/speaker and keyboard cables are not pinched or exposed when
replacing the mass storage devices enclosure.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Chapter 8.21 LED/Speaker Cable, Keyboard Cable, and LED Assembly
To remove the LED/speaker cable, keyboard cable, and LED assembly:
1. Complete the preparation procedure (see Section 8.2).
2. Remove the rear panel (see Section 8.4).
3. Remove the interface connector cover, if installed (see Section 8.5).
4. Remove the 32 bit memory/modem interface board, if installed
(see Section 8.8).
5. Remove the system board (see Section 8.14).
6. Remove the mass storage device subassembly (see Section 8.16).
7. Remove the mass storage device enclosure (see Section 8.20).
8. Locate the keyboard cable connector shown in Figure 8-59.
