Chapter 8.19 Power Supply
To remove the power supply:
1. Complete the preparation procedure (see Section 8.2).
2. Remove the rear panel (see Section 8.4).
3. Remove the interface connector cover, if installed (see Section 8.5).
4. Remove the 32 bit memory/modem interface board, if installed (see
Section 8.8).
5. Remove the system board cover (see Section 8.6).
6. Remove the microprocessor cover (see Section 8.7).
7. Remove the system board (see Section 8-14).

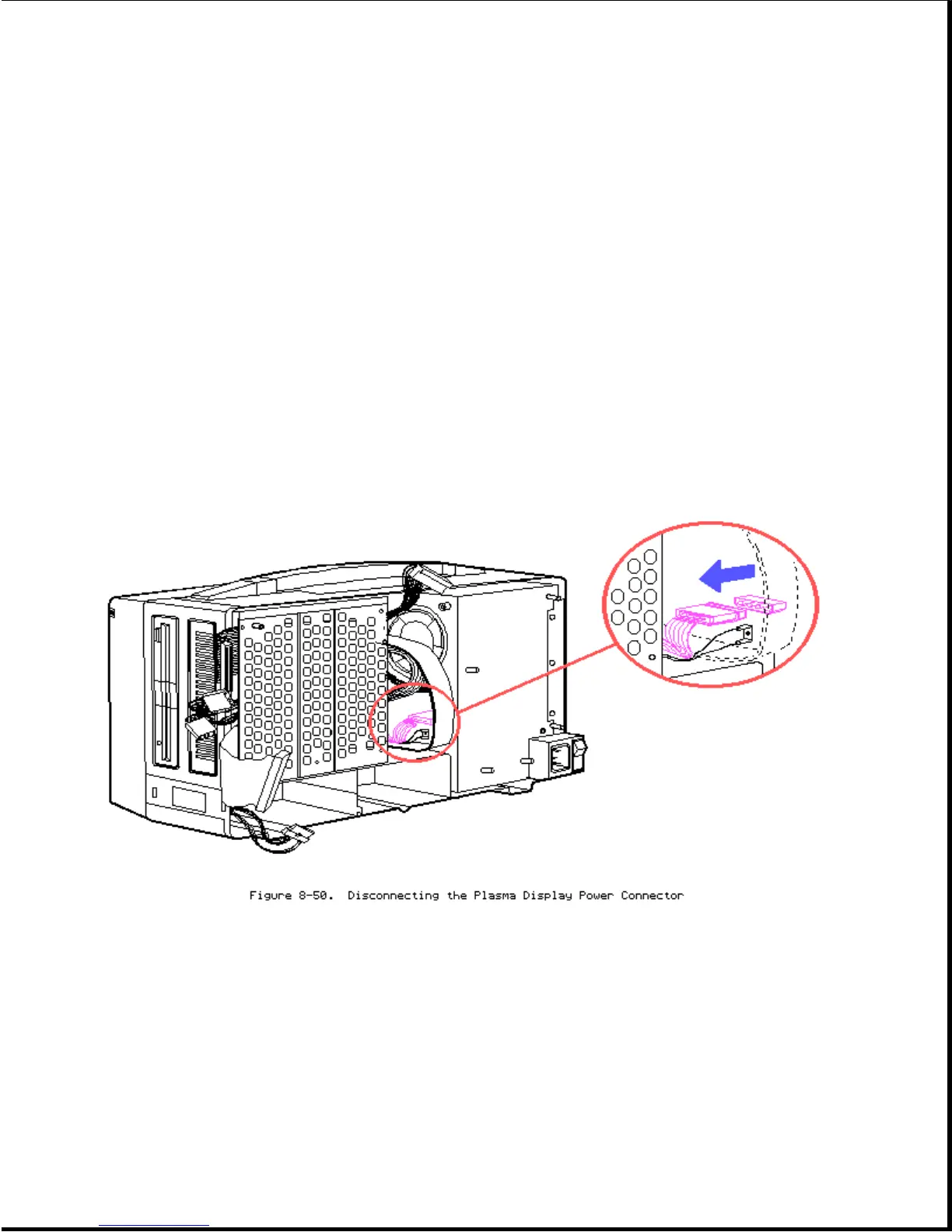

8. Disconnect the plasma display power connector from the power supply
(Figure 8-50).
9. Locate the power supply shown in Figure 8-51.
