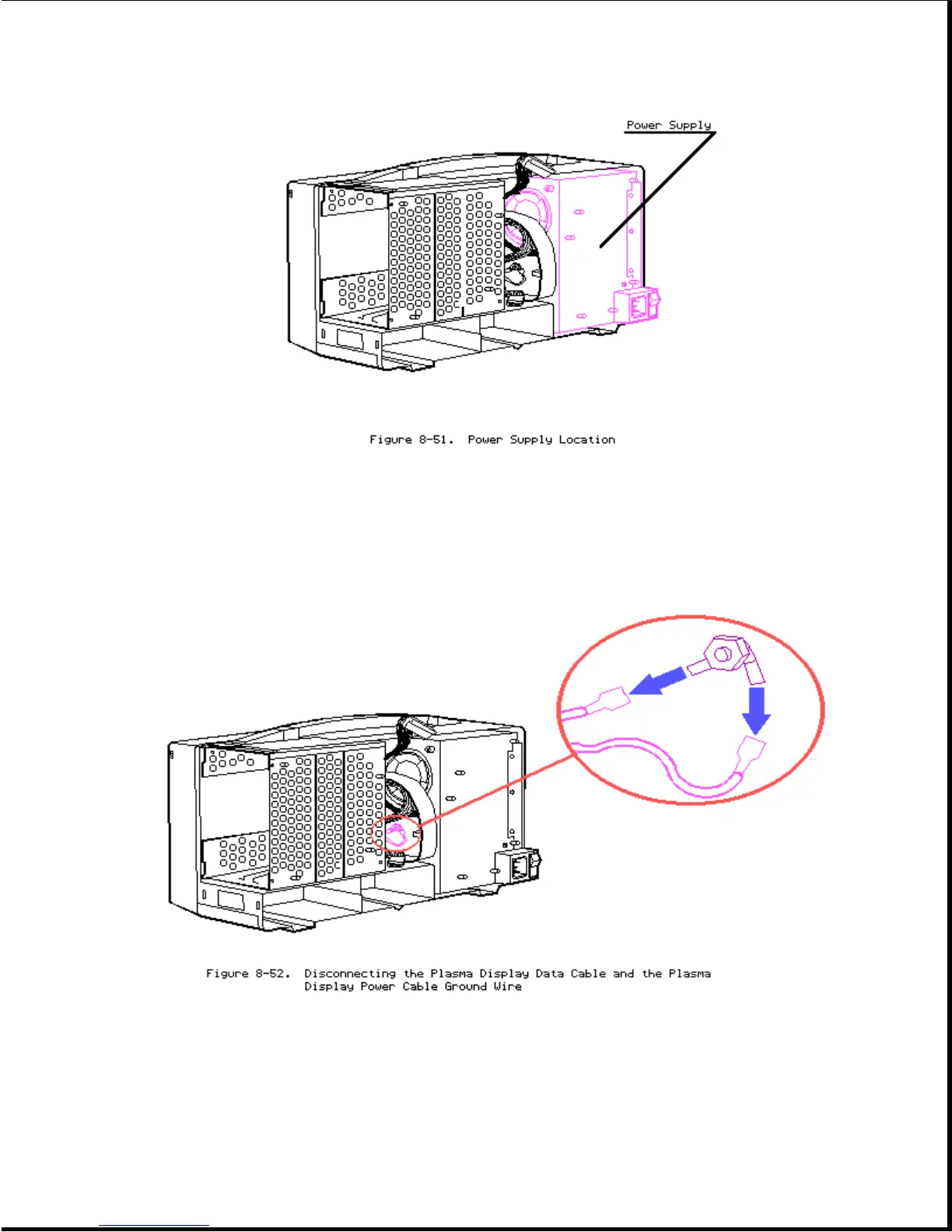

10. Disconnect the plasma display data cable and the plasma display power
cable ground wire from the power supply (Figure 8-52).
11. Place the computer in an upright position.
12. Place the plasma display at an outward angle and remove the top two
screws and washers with an angle Torx screwdriver (Figure 8-53).
