1. Complete the preparation procedure (see Section 8.2).
2. Remove the rear panel (see Section 8.4).
3. Remove the 32 bit memory/modem interface board, if installed (see
Section 8.5).
4. Remove the system board (see Section 8.10).
5. Remove the plasma display controller board (see Section 8.11).
6. Remove the plasma display (see Section 8.18).
7. Remove the display enclosure (see Section 8.20)

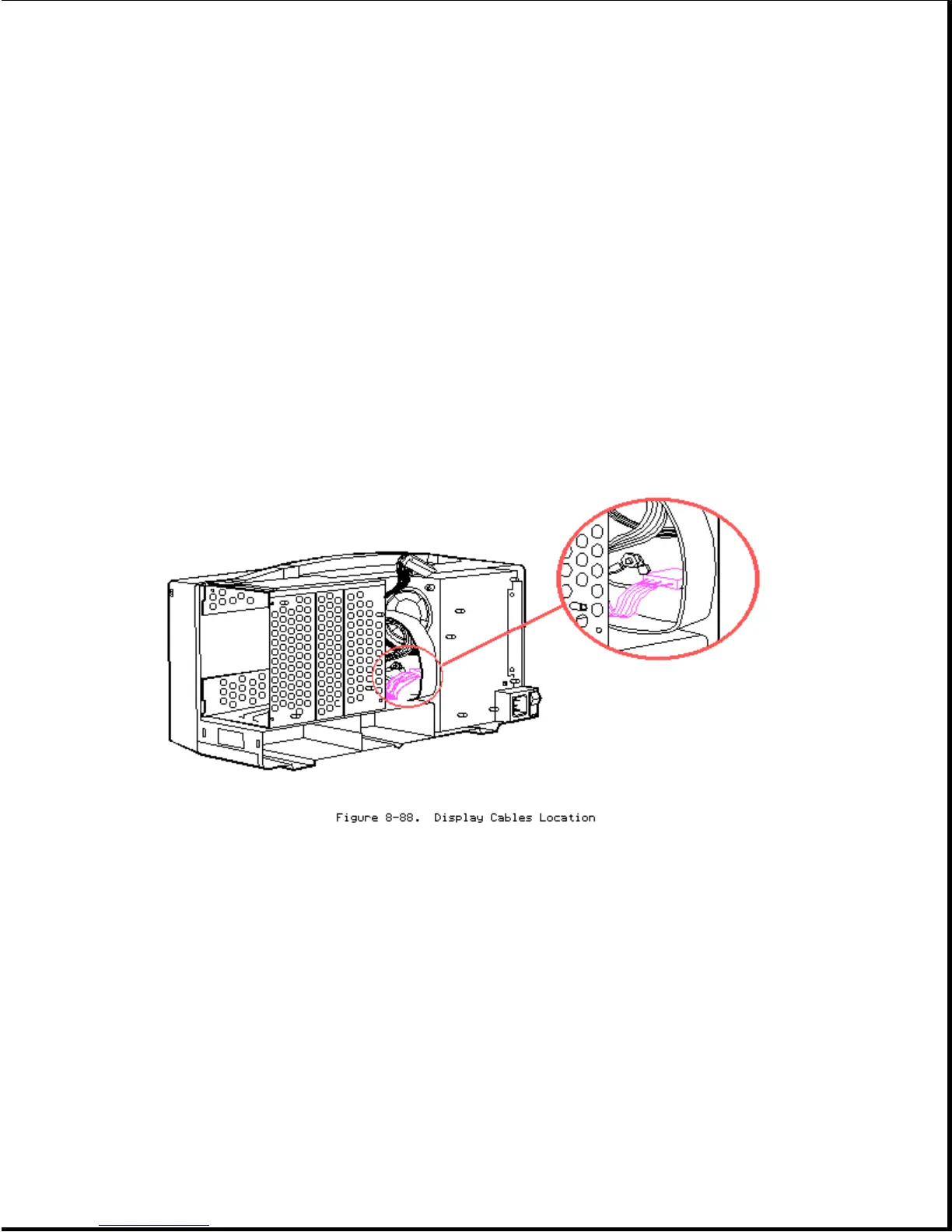

8. Locate the display power cable assembly and the display data cable
assembly shown in Figure 8-88.
9. Disconnect the plasma display power cable from the power supply
(Figure 8-89).
