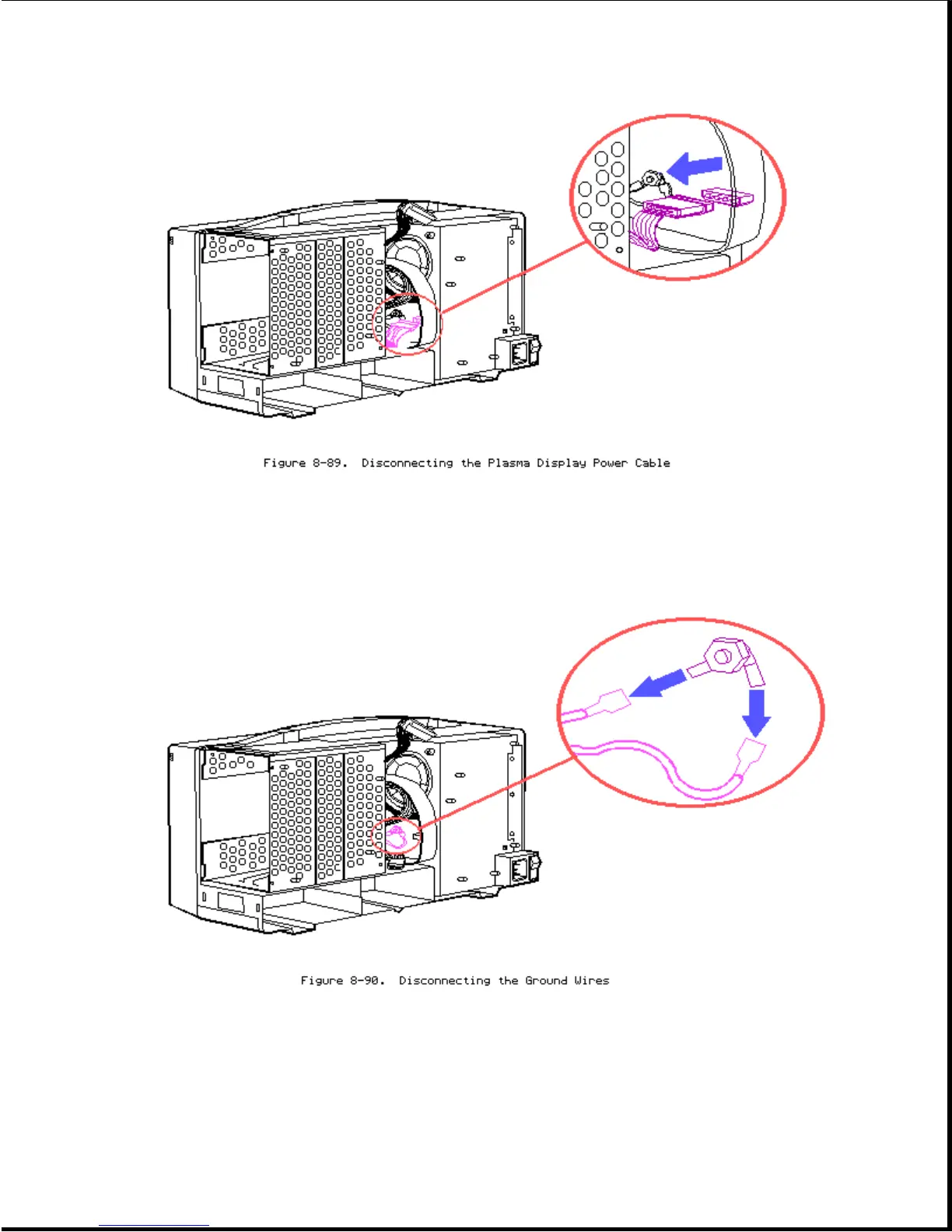

10. Disconnect the display data cable and display power cable ground wires

from the power supply (Figure 8-90).

11. Remove the screw that secures the strain relief bracket to the main

enclosure (Figure 8-91).
