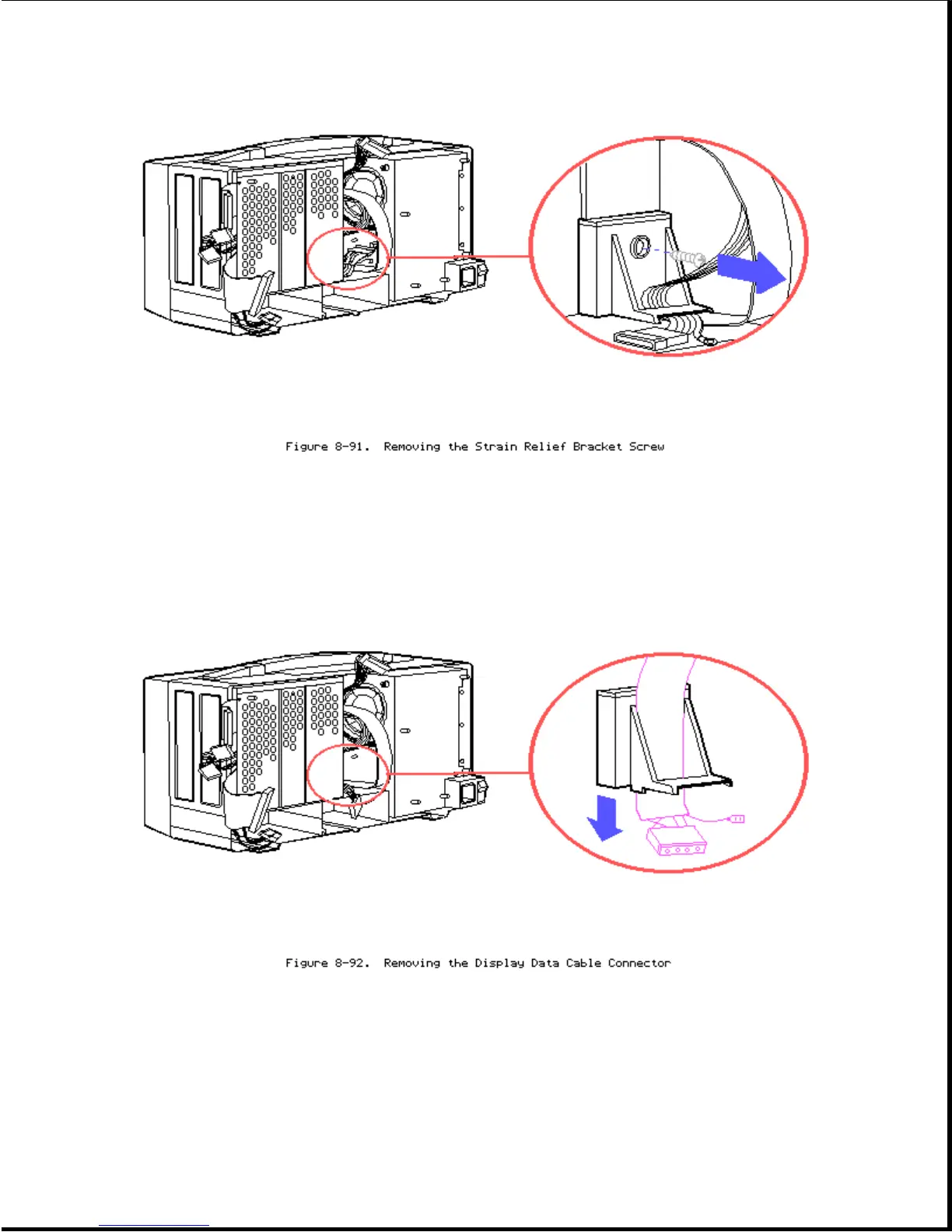

12. Remove the display data cable connector from the plasma display

controller board compartment (Figure 8-92).

13. Guide the display power cable assembly and the display data cable

assembly through the opening in the main enclosure wall (Figure 8-93).
