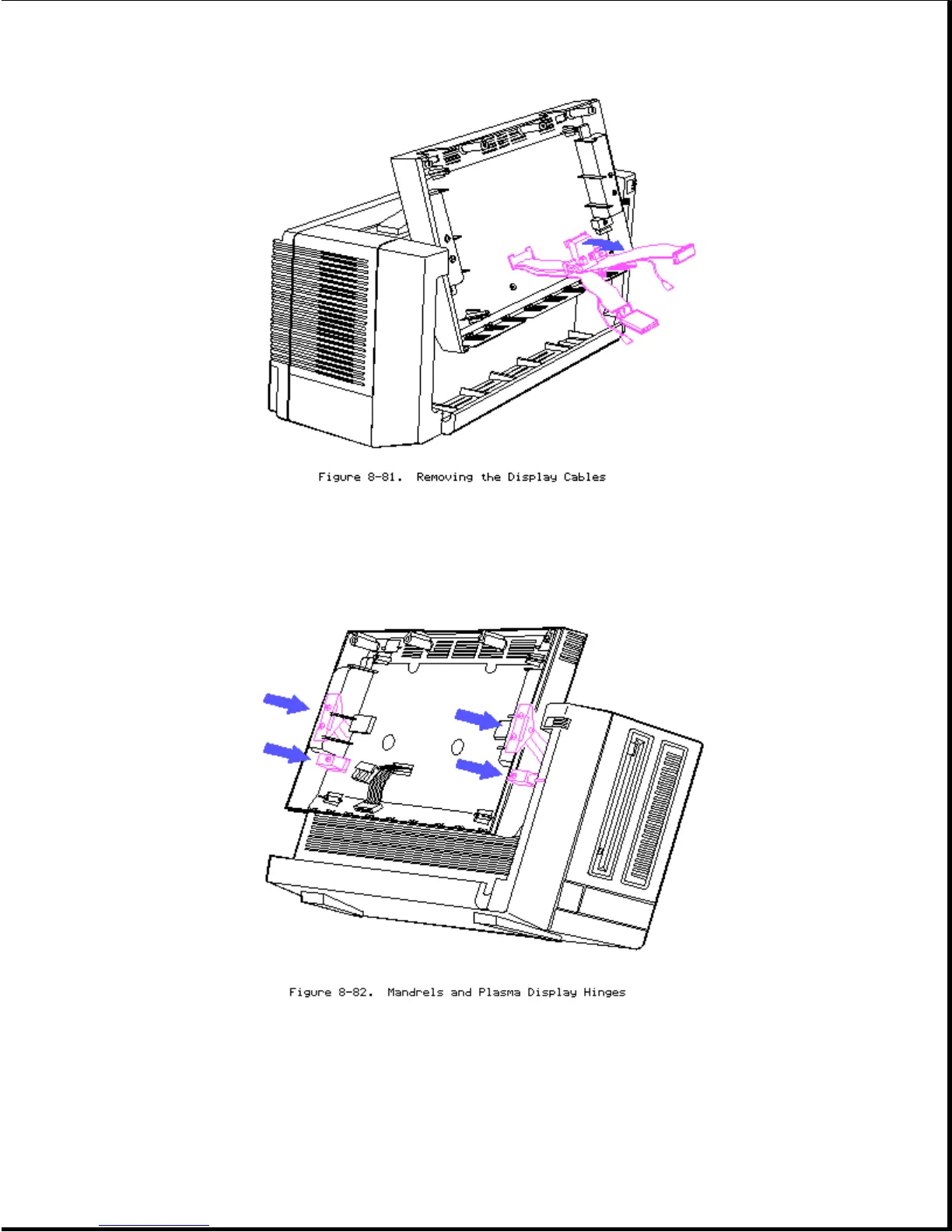

5. Observe that the display enclosure is attached to the main enclosure by

two mandrels and two plasma display hinges (Figure 8-82).

6. Remove the one screw that secures each mandrel to the display enclosure

(Figure 8-83).
