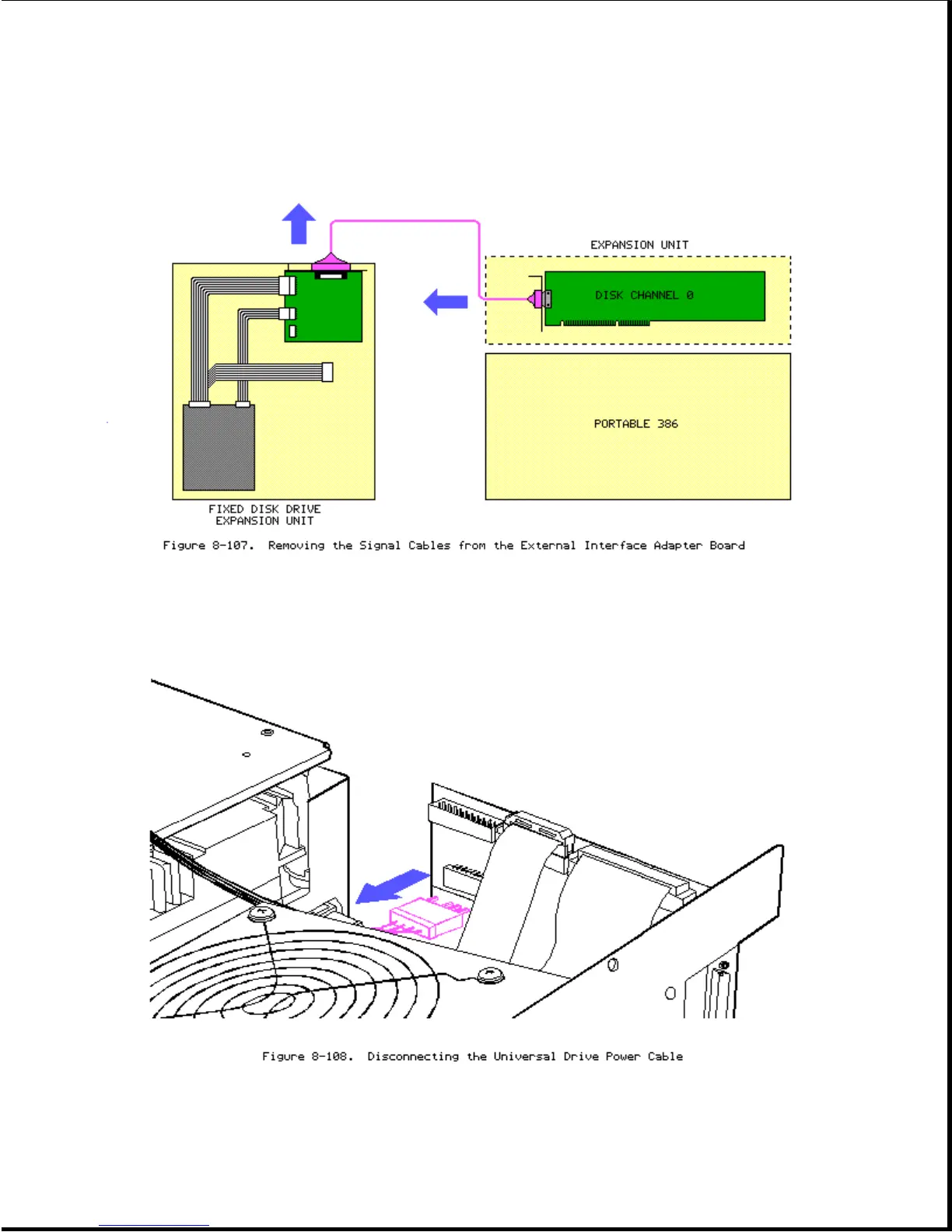

2. Disconnect the 20 pin and 34 pin signal cables from the external interface
adapter board in the fixed disk drive expansion unit (Figure 8-107).
3. Disconnect the universal drive power cable from the external interface
adapter board in the fixed disk drive expansion unit (Figure 8-108).
4. Remove the three retaining screws securing the fixed disk drive to the
fixed disk drive expansion unit (Figure 8-109).
