2.4 Type and rating plates
The SAM type plate and meter rating plate are listed below. Typically, the SAM type plate is visible from the
outside (view of the charging station) and the meter rating plate is not.

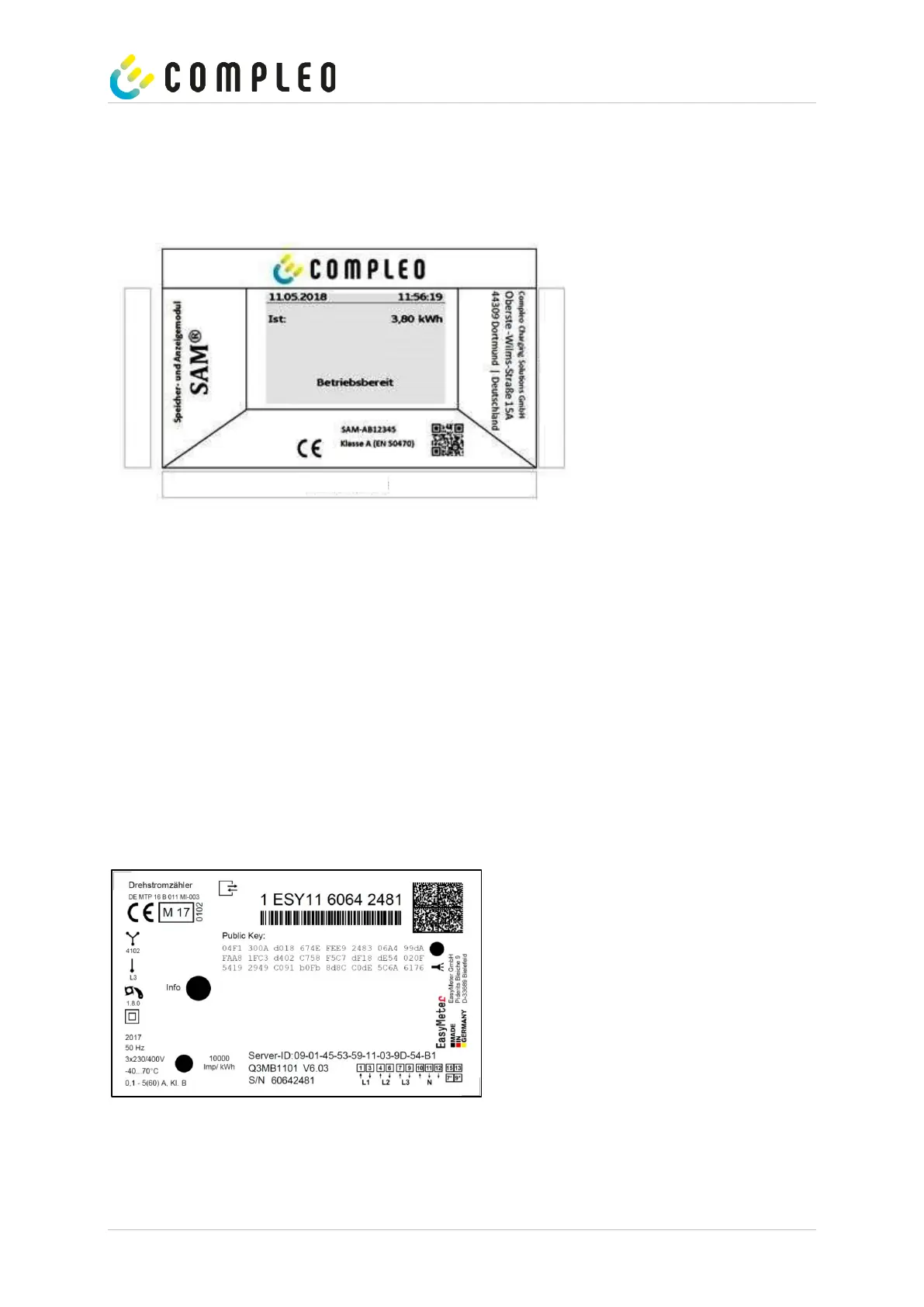

Type plate of the SAM
Figure 2: Type plate of the SAM (example)
Display frame: Labelled with
- Upper field: Company logo
- Left field: Product name
- Right field: Manufacturer's address
- Lower field:
• Metrology marking incl.
• production year
• Notified body
• CE marking
• Type designation SAM incl. serial number/type key (can be used for HW
identification)
• QR code (contains the type designation and serial number)
• Accuracy classification
Rating plate of the meter
Figure 3: Rating plate of the meter (example)
