Maintenance
90 D111XXXXXX | 05 2023-05
8.2 Maintenance work
8.2.1 Replacing the filter mat at the air outlet
1. Open the door of the charging station.
2. Unscrew the screw on the filter holder (1).
3. Tilt down the filter clamping plate (2) and
replace the filter mat.
4. Fold up the filter clamping plate again and
screw it tight.
5. Note: The cover need not be removed.

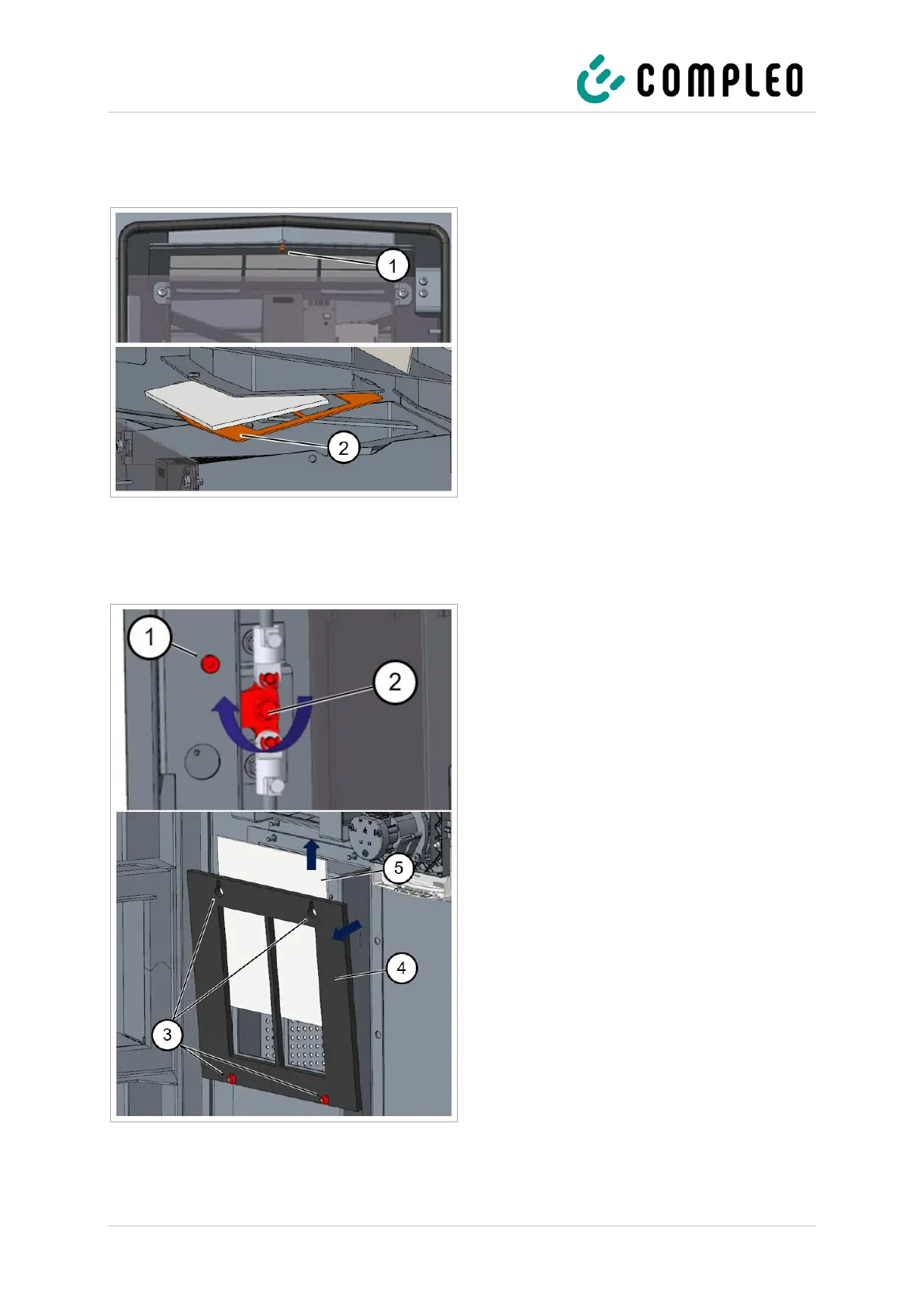

Fig. 41: Filter mat - Air outlet (top)
8.2.2 Replacing the filter mat at the air inlet
1. Open the door of the charging station.
2. Unscrew the screw approx. 10 mm (1).
3. Turn the locking lever of the door 90 °
upwards (2) and open the side door.
4. Loosen the nuts (3), push the filter holder
upwards and fold it out (4).
5. Pull out filter mat (5).
6. Replace filter holder together with new
filter mat and tighten nuts.
7. Turn the locking lever of the door 90°
downwards (2) and close the side door.
8. Screw the screw back in (1) and close the
door.
Fig. 42: Filter mat - Air inlet (bottom)
