5.7 Data connection cable
If it is necessary to connect an individual charging station to a network by means of a cable, this must
be done using a pre-installed cable connector. The cable connector is prepared on the system side
and must be connected on the mains side during electrical installation. Open the cable connector on
the mains side and prepare the cable according to the following figures.
The minimum cross-section of the individual strands of the network cable must be below AWG 26.
When using a smaller cross-section than AWG 26, it cannot be guaranteed that a connection can be
established.
As a network cable to be used on the network side, we recommend using a cable with the following
designation and article number:
• Designation: HELUKAT 600E S/FTP PVC
• Article number: 802167, S/FTP 4x2xAWG23/1 PVC (S-STP)

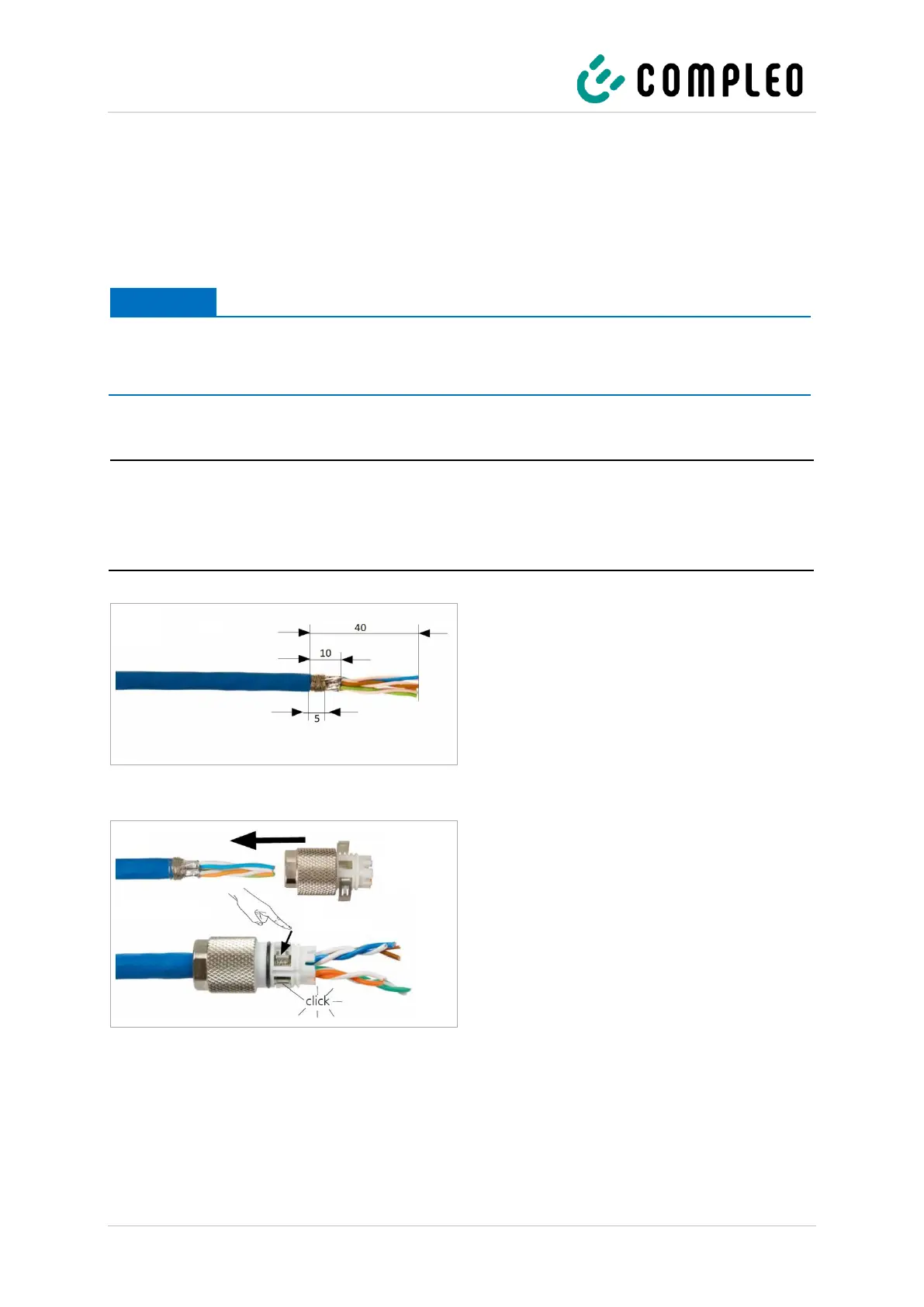

1. Strip 40 mm of insulation from the cable as
shown in the adjacent figure.
2. Wrap the braided shield evenly around the
foil shield at the end of the jacket over a
width of 5 mm.
3. Remove the foil shield so that it only
protrudes 10 mm from the jacket.
Fig. 24: Stripping the cable
4. Push the connecting piece onto the
prepared cable.
5. Secure the connecting piece by locking the
two shield clamps.
– Make sure that the cables are
correctly assigned to the
corresponding gap (colour on
colour).
– If crossing of wire pairs is necessary,
this procedure must be carried out
before the connecting piece is
inserted.
Fig. 25: Sliding on the connecting piece
