Product description
12 D111XXXXXX | 05 2023-05
3 Product description
The charging system described below is designed for charging electric vehicles indoors and outdoors with
installation on solid ground.

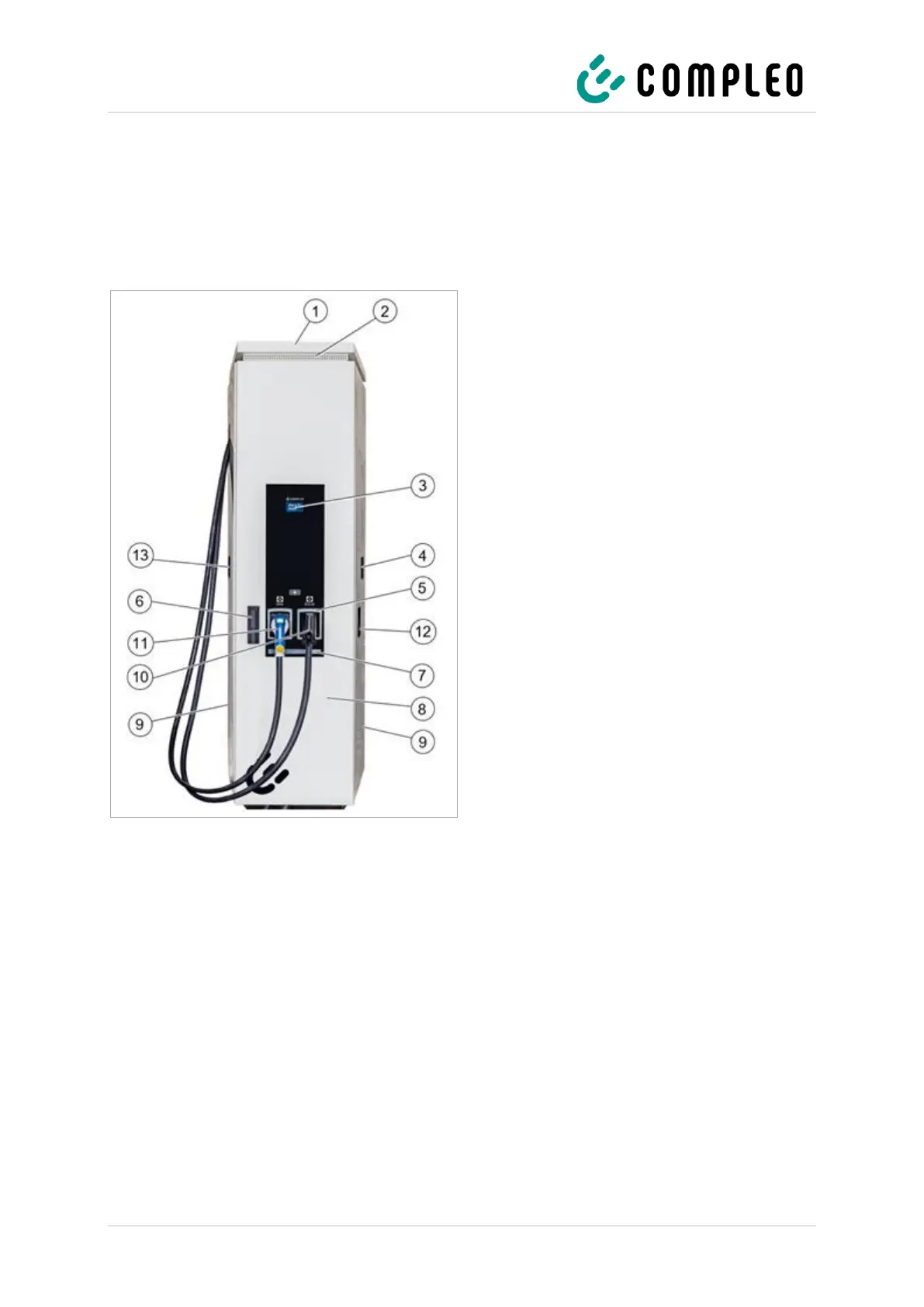

3.1 Design
1 Cover (roof)
2 Air outlet
3 Colour display
4 Counter DC (compliant with calibration law)
5 Status display of the charger interfaces
6 Door with locking mechanism
7 Near field illumination
8 Basic housing
9 Air Inlet
10 Charger interface CCS
11 Charger interface CHAdeMO
12 Charger interface, socket type 2
13 Counter AC (compliant with calibration law)
