Installation
40 D111XXXXXX | 05 2023-05
5.4.1 Installation version BM
Installation sequence
1. Select a suitable location.
2. Check parts and installation material for completeness.
3. Check the substrate.
4. Route the power supply cable.
5. Drill mounting holes.
6. Insert screw anchors.
7. Place and align the charging system.
8. Insert the power supply cable into the charging system.
9. Fasten the charging system with installation material.
10. Prepare electrical installation.
Installation takes place on prepared asphalt or
concrete surfaces.
The charging system is then mounted and finally
installed.
Refer to the design drawings in the Annex for the
dimensions of the charging system.
The installation material for fixing is included in
the scope of delivery.

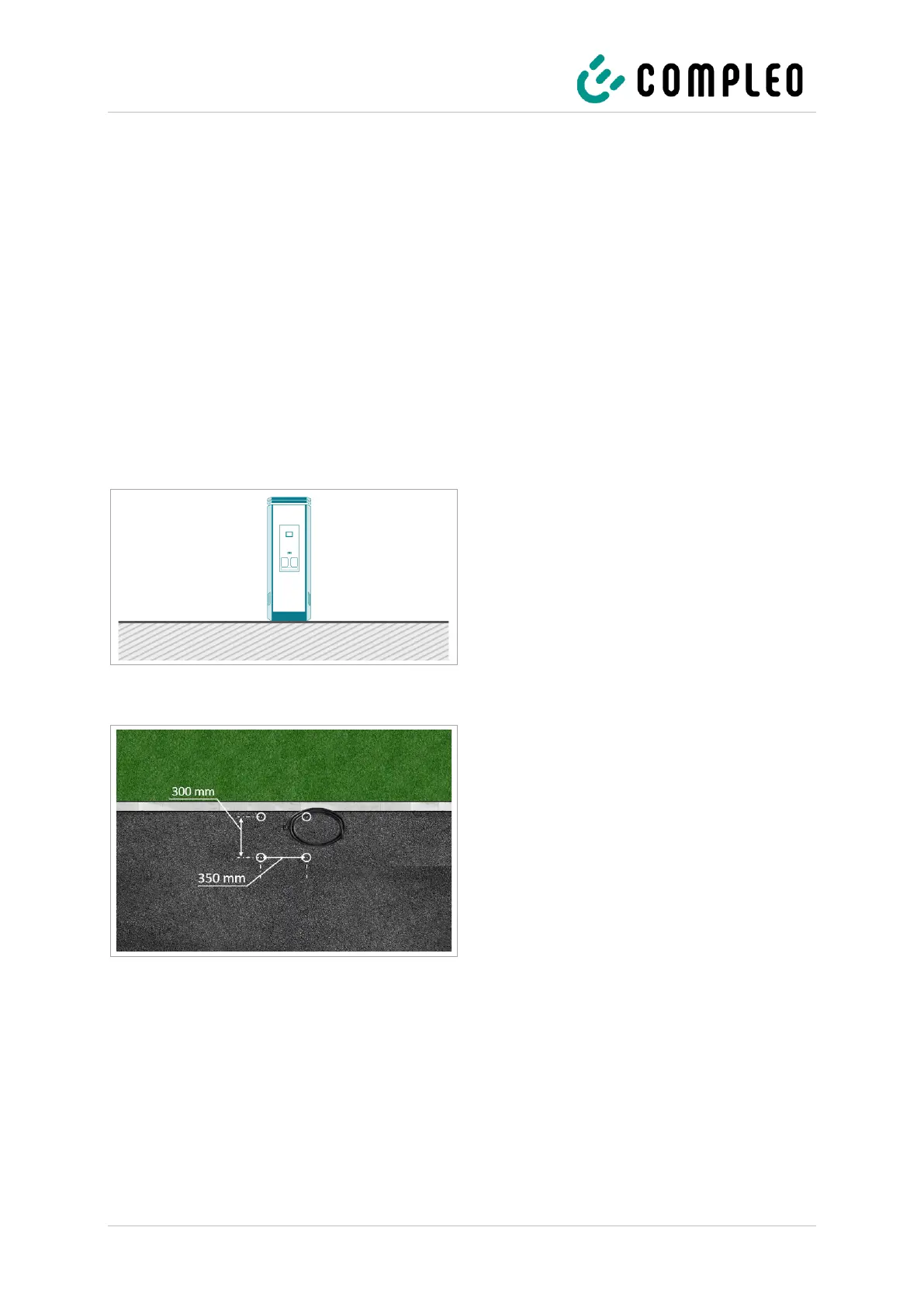

Fig. 10: Schematic diagram of installation
Installation requirements
• Substrate with sufficient layer thickness,
consistency and bearing capacity
• Asphalt or concrete thickness of the
substrate at least 120 mm
• Flat support surface
• Guidelines for boreholes:
– Ø of the boreholes: 16 mm
– Distances: 300 mm and 350 mm
– Depth: 110 mm
