Installation
2023-05 D111XXXXXX | 05 41

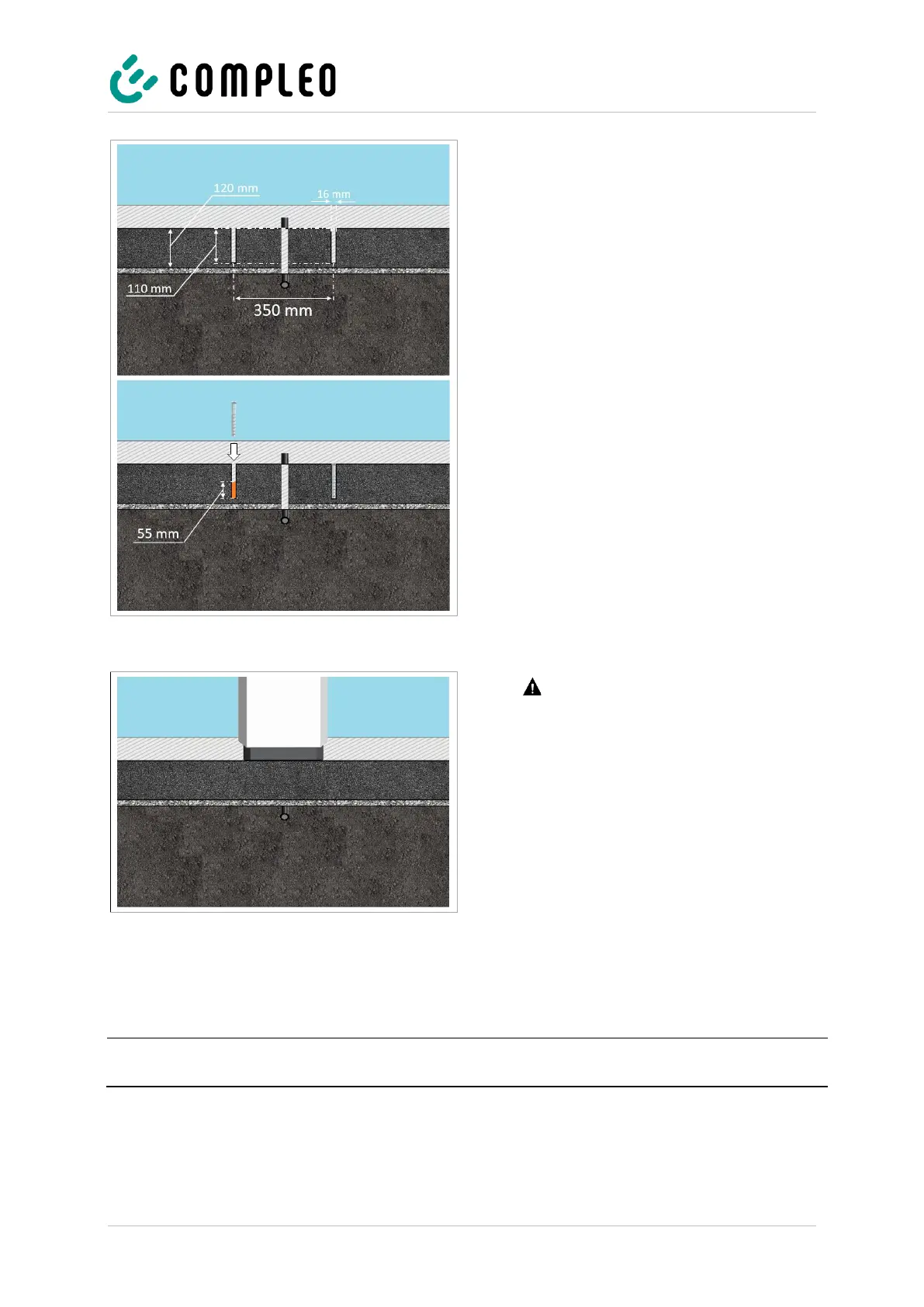

Carrying out installation
1. Mark boreholes.
2. Drill boreholes according to instructions.
3. Fill boreholes up to a height of 55 mm with
injection mortar.
4. Insert screw anchor with internal thread
(M 10) and an external diameter of 16 mm.
5. Allow the injection mortar to harden.
6. WARNING – Crushing of body parts due
to unintentional lowering. Body parts must
not be under lifted load.
Position and align the charging system over
the boreholes so that the mounting holes
of the charging system match the
boreholes.
7. Insert the power supply cable into the
charging system from below. If the power
supply cables are not fed from below, the
charging system must be closed with a
base plate.
8. Fasten the charging system with four
screws (M 10 x 50).
Fig. 13: Fastening the charging system
If the power supply cables are not fed from below, it is recommended to close the lower drilled holes with a
base plate. The base plate is supplied as an option. For alternative cable routings, see the following page.
