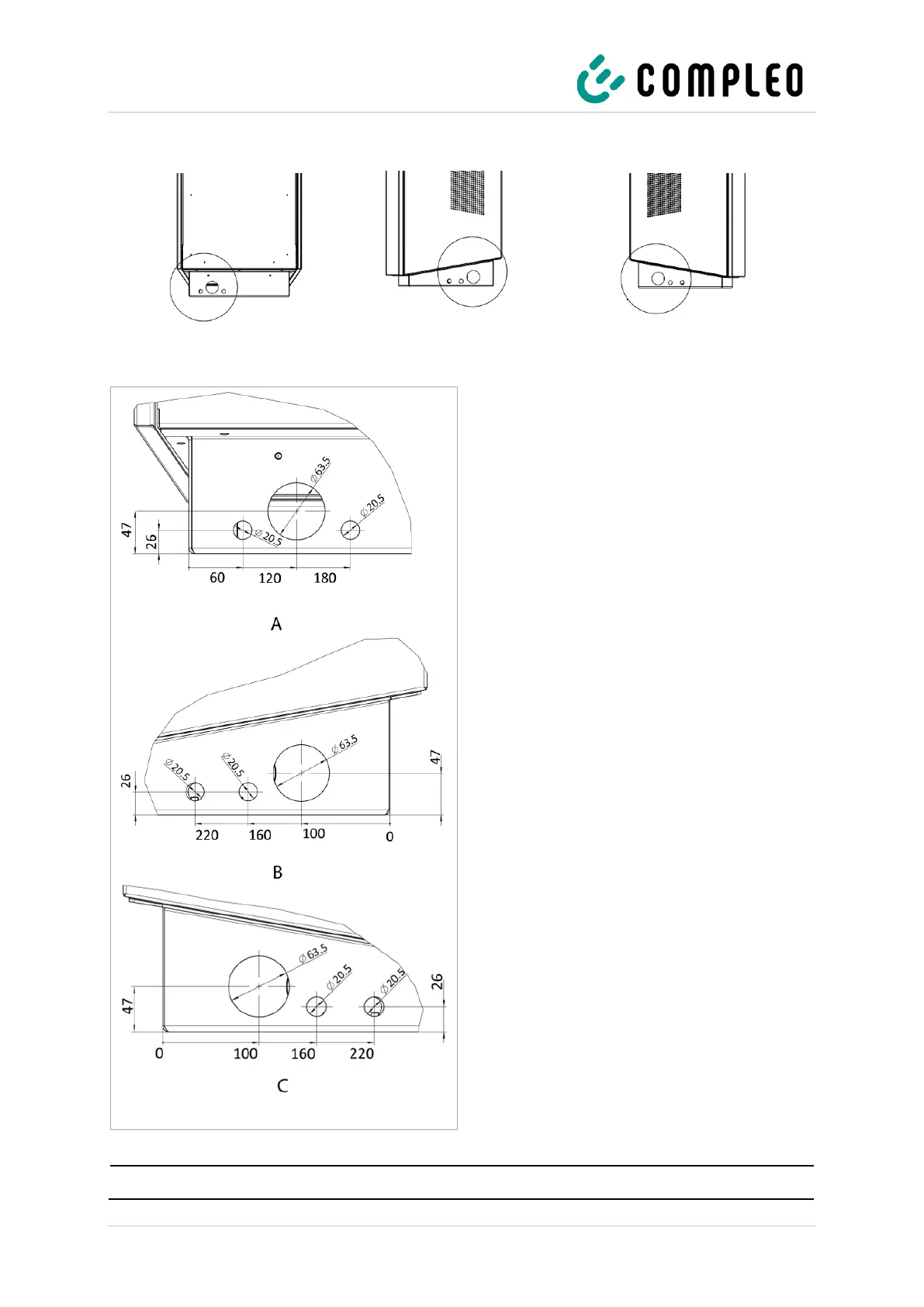

If the supply lines cannot be routed through the bottom of the charging system, they can be fed in at
the rear (A), right (B) or left (C) of the unit base.
Holes can be drilled in the area on the
corresponding sides of the unit base using a
suitable tool. Drill bits can be supplied as an
option.
The subsequent insertion of the gland and the
feeding of the supply cables must not reduce the
IP degree of protection and IK degree of
protection of unit base.
The gland must therefore be selected on the
basis of the place of use and the expected
ambient conditions. Special attention should be
paid to the temperature, humidity and UV
resistance. Waterproof cable glands are
recommended.
In addition, a strain relief should be installed to
protect the supply lines from being torn out.
