5.4.4 Closing the housing
A swing lever mechanism is installed in the front
door of the housing. Depending on the version,
this is a single or double lock.
A lock can be installed inside the swivel lever to
prevent access by unauthorised persons.

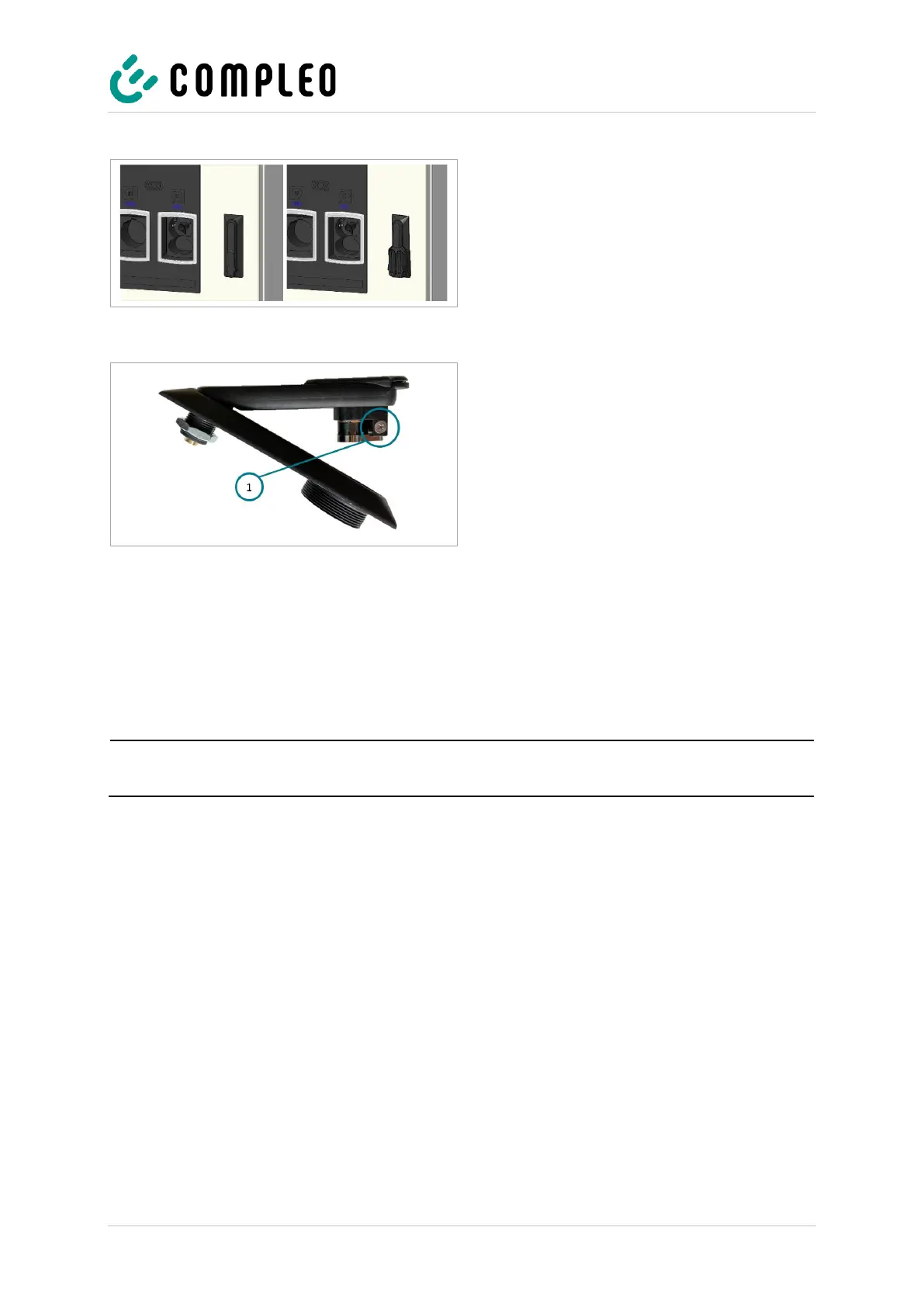

Fig. 20: Example of a housing with single or double lock
The profile half-cylinder lock is optionally
included in the scope of delivery.
Opening the housing
1. Unlock the lock with the associated key.
2. Swing out pivoted lever and turn to the left.
3. Open door to the right.
If necessary, the profile half-cylinder lock can be
replaced. For this purpose the fixing screw must
be unscrewed.
After replacing the lock, it must be secured again
with the fixing screw.
Fig. 21: Pivoted lever with lock
If no locking cylinder is installed inside the pivoted lever, the lever can only be opened using a
suitable tool. A construction key is required to reopen a closed lock.
