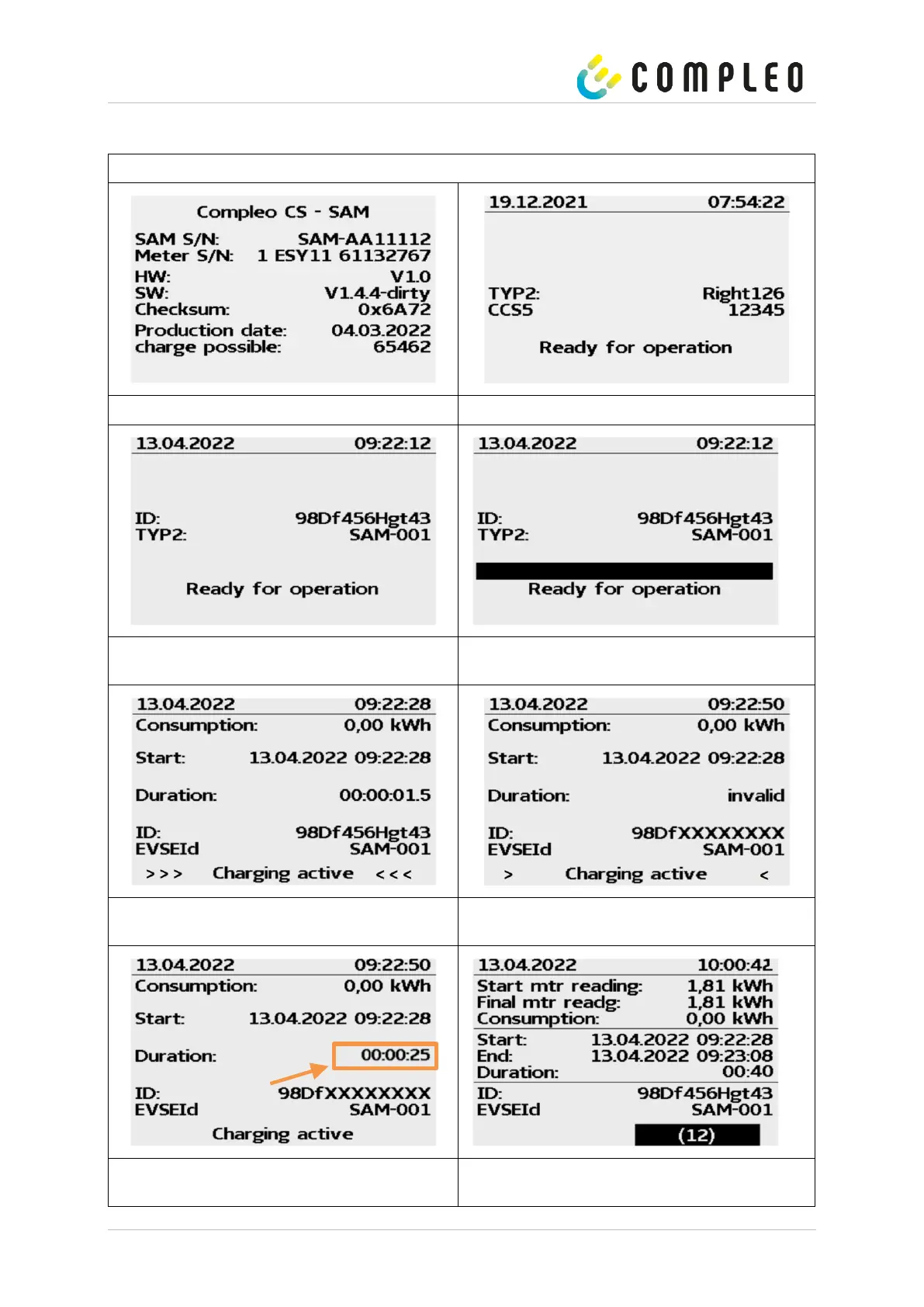

2.5 Overview of all displays (examples)
Info screens (without interaction with the user)
Ready for operation (idle state)
Display of the ID after a successful authorisation.
2 second progress bar (from left to right) until the
timing starts.
Current measured values. The number of arrow
symbols represent the number of loaded phases.
After a few seconds, the last digits of the ID are
substituted.
Display of duration with tenths of seconds, only in
the first minutes after the start.
Summary at the end of the charging process.
