1. Cut the connecting cable of the PA
connection to length so that the cable
above the base plate has a length of
approx. 300 mm.
2. Lead the round wire directly into the PA
terminal.
Strip 30 mm of insulation from any single
wire.

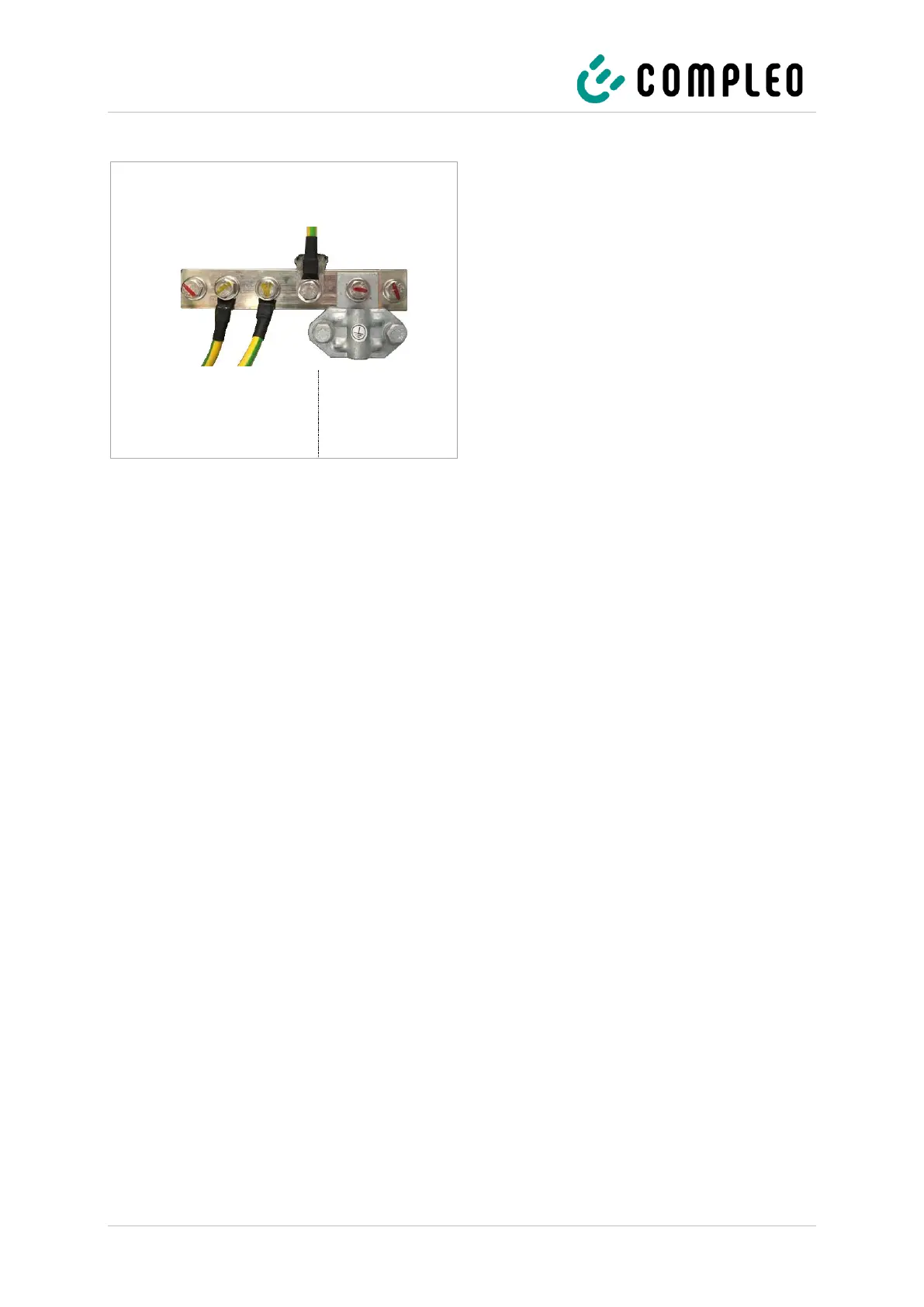

3. Connect the connecting cable of any
earthing to the PA rail as shown in the
adjacent figure.
Connect any single wire instead of the PA
terminal using a cable lug.
4. Make sure that the cables are connected
correctly and the terminal screws are
tightened firmly.
5. Replace all covers that may have been
removed previously.
