6 SAM installation
6.1 Connections
The following illustrations provide an overview of the available connections. The SAM has a 6-pole plug-in
connection for the 12 V operating voltage and the 20 mA interface, which is connected to the control unit.
The AC meter has connection terminals for the conductors L1 - L3 and the neutral conductor.
The DC meter has connection terminals for the plus and minus lines, sense lines and the auxiliary power supply
(230 VAC).

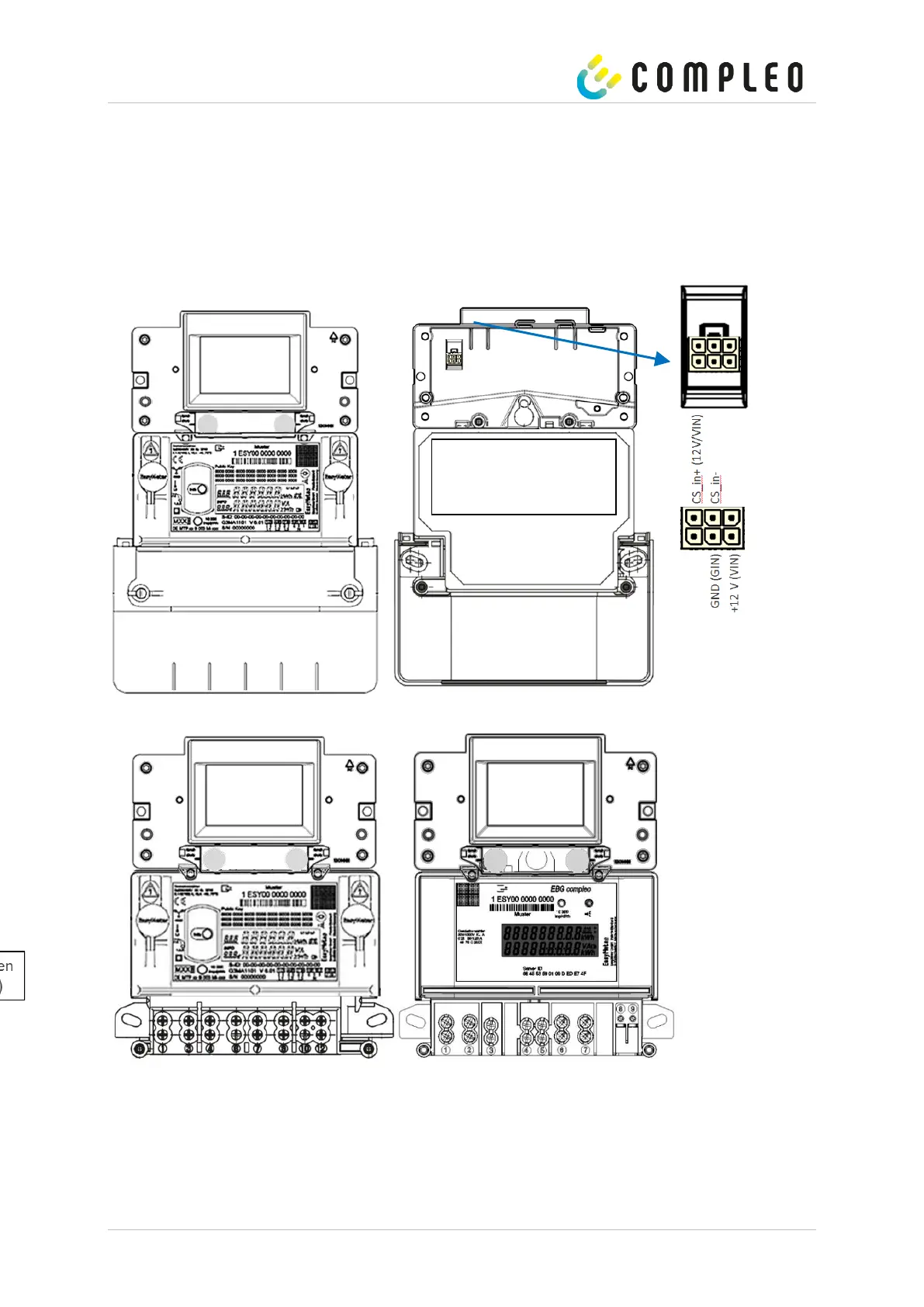

Figure25: Top: Front and rear with AC meter, below the representation of the connections; left AC, right DC
1)
1) = not relevant for compleo Solo
