5.8 Installation of the cable management system (CMS) and the collision
protection

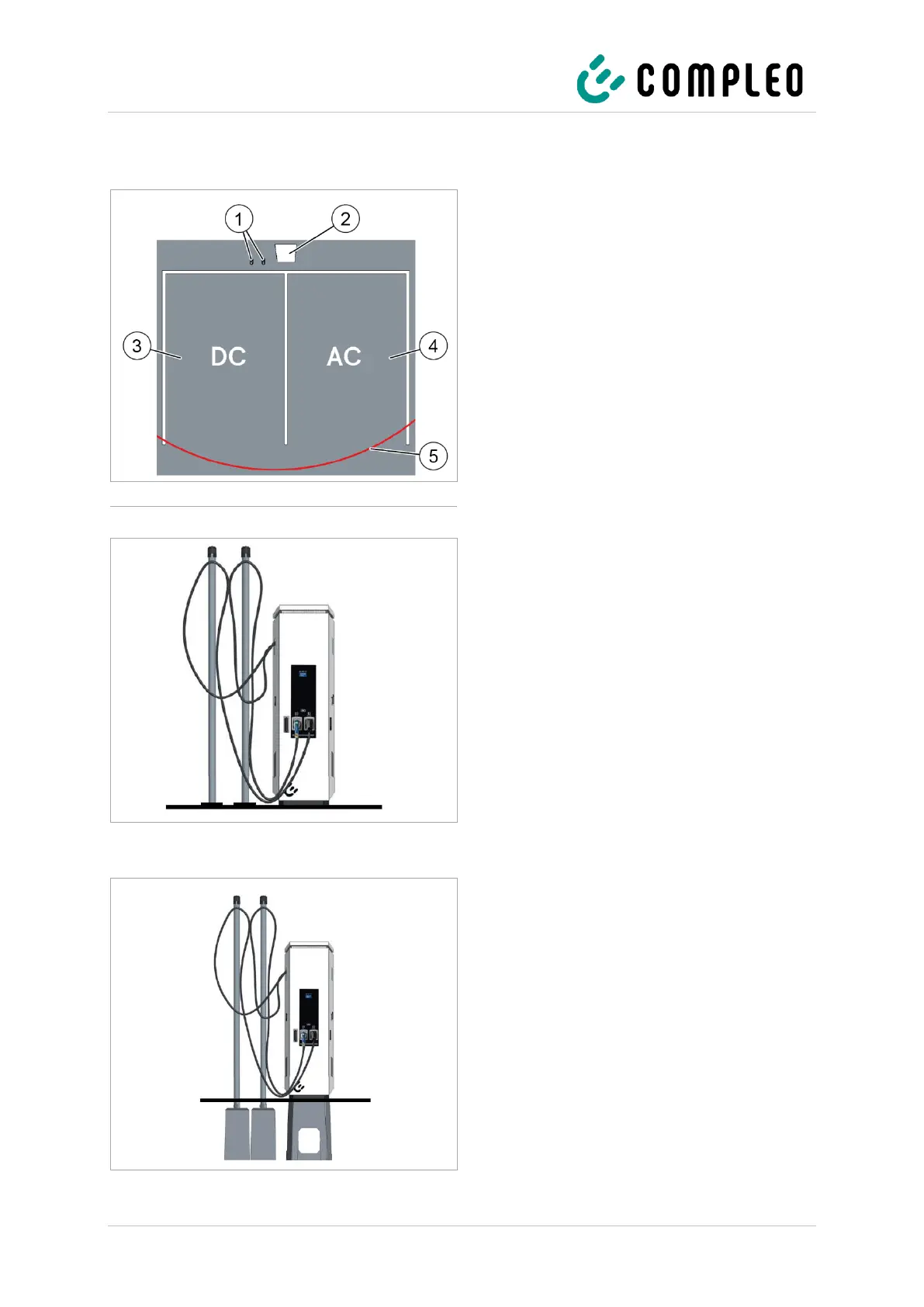

Arrangement
1 CMS
2 charging station
3 DC parking space
4 AC parking space
5 Charging plug range (6 m radius)
• - Ground mounting; the CMS is anchored
to the ground with a mounting plate.
The installation site must be chosen so that the
cables do not protrude onto the road and do not
come to rest between the kerb and the road.
The installation material for fixing is included in
the scope of delivery.
Fig. 31: Cable management system BM
• The concrete base is embedded in the
ground. The CMS is then mounted and
finally installed.
The installation site must be chosen so that the
cables do not protrude onto the road and do not
come to rest between the kerb and the road.
The spacing dimensions can be found in the
following installation description.
The installation material for fixing is included in
the scope of delivery.
Fig.3: Cable management system with concrete base
