4.3 Transport with lifting gear
Suspended loads
Falling loads can cause serious injury or death.
• Never step under suspended loads.
• Attach slings only to the designated attachment points.
• Only use approved lifting gear and slings in perfect condition with sufficient load capacity.
• Transport the load close to the ground and set it down immediately after transport to its
destination.
1. Open the door of the charging station.
2. Unscrew the screw approx. 10 mm (1).
3. Turn the locking lever of the left door 90 °
upwards (2) and open the left side door.
– Make sure that no cables are
damaged.
– The cover need not be removed.
Steps 2 and 3 are to be applied
analogously for the right door.

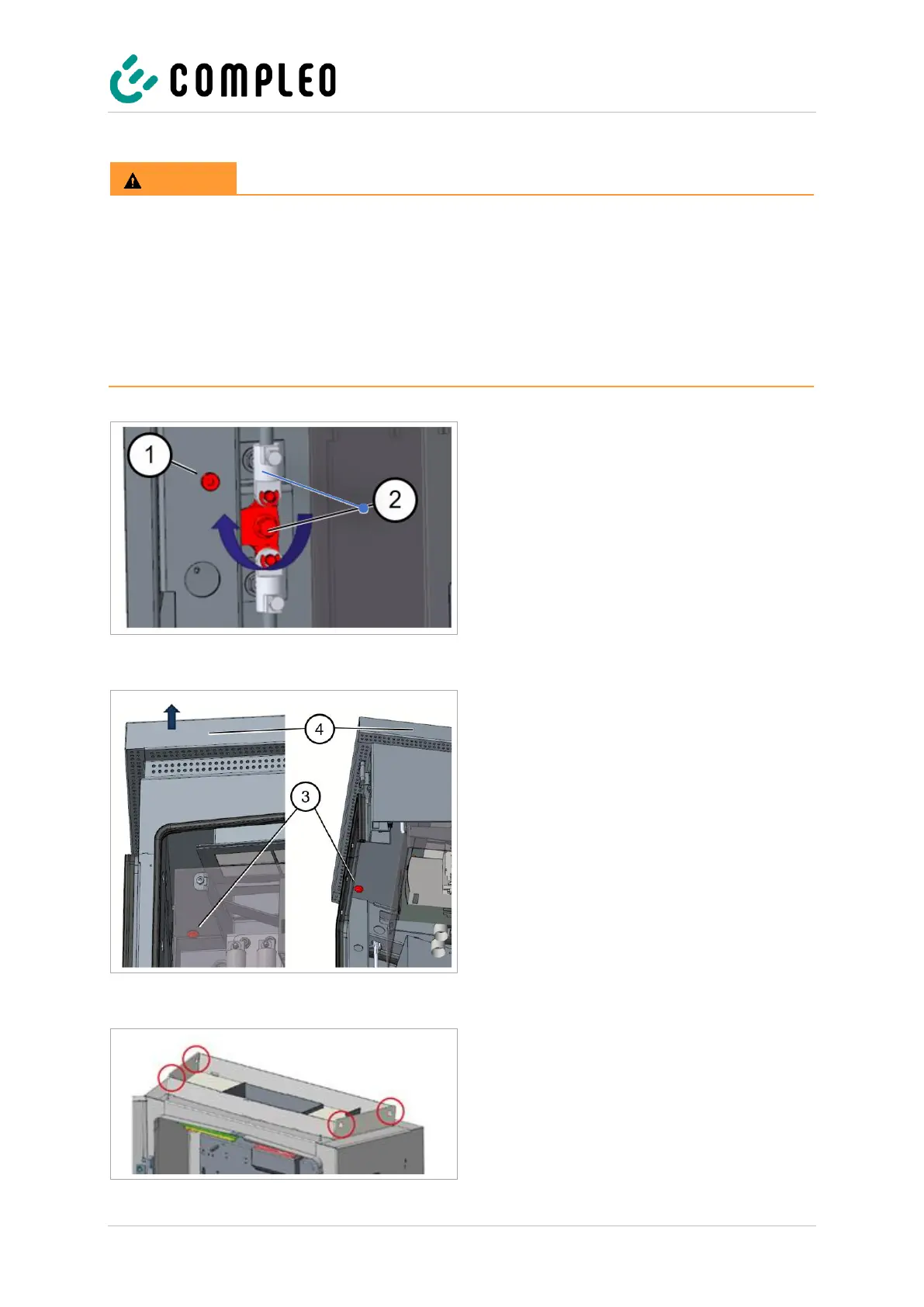

Fig. 4: Opening the side doors
4. Unscrew four screws (3) under the roof.
5. Remove the roof (4) upwards.
6. Place the roof on a soft surface to avoid
scratches.
Fig. 5: Removing the roof
7. Bring suitable lifting gear into position.
- The lifting gear must be designed for a
transport weight of 250 kg.
8. Attach suitable ropes with shackles to the
four attachment points.
9. Lift the charging station slowly and ensure
that it hangs vertically.
Fig. 6: Slinging and lifting the charging station
