5.2 Parking space arrangement
For the simplest and most convenient execution of individual or parallel charging processes, a well
thought-out arrangement of the parking spaces around the charging system is recommended. The
principle of the parking space arrangement is shown in the following illustrations.

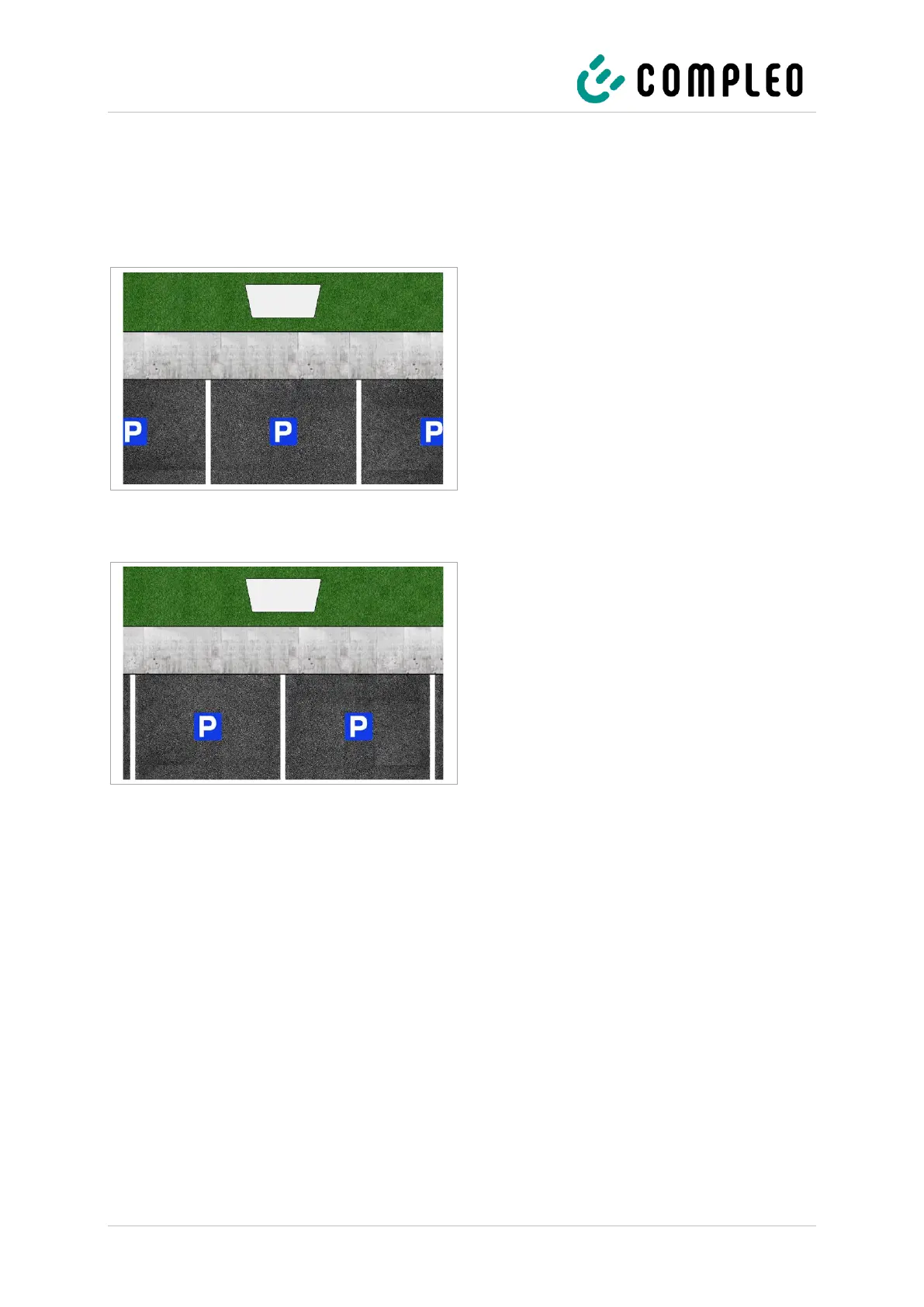

3 charging points
Connection to AC interface:
• Park the vehicle on the right in front of the
charging system
Connection to DC interface:
• Park the vehicle on the left in front of the
charging system
• and/or park centrally in front of the
charging system
Fig. 8: Three charging points
2 charging points
Connection to AC interface:
• Park the vehicle on the right in front of the
charging system
Connection to DC interface:
• Park the vehicle on the left in front of the
charging system
Fig. 9: Two charging points
