1. Cut the power supply cable to length so
that the cables above the base plate have a
length of approx. 300 mm.
2. Strip 30 mm of insulation from the
individual wires or according to the cable
lugs to be used.

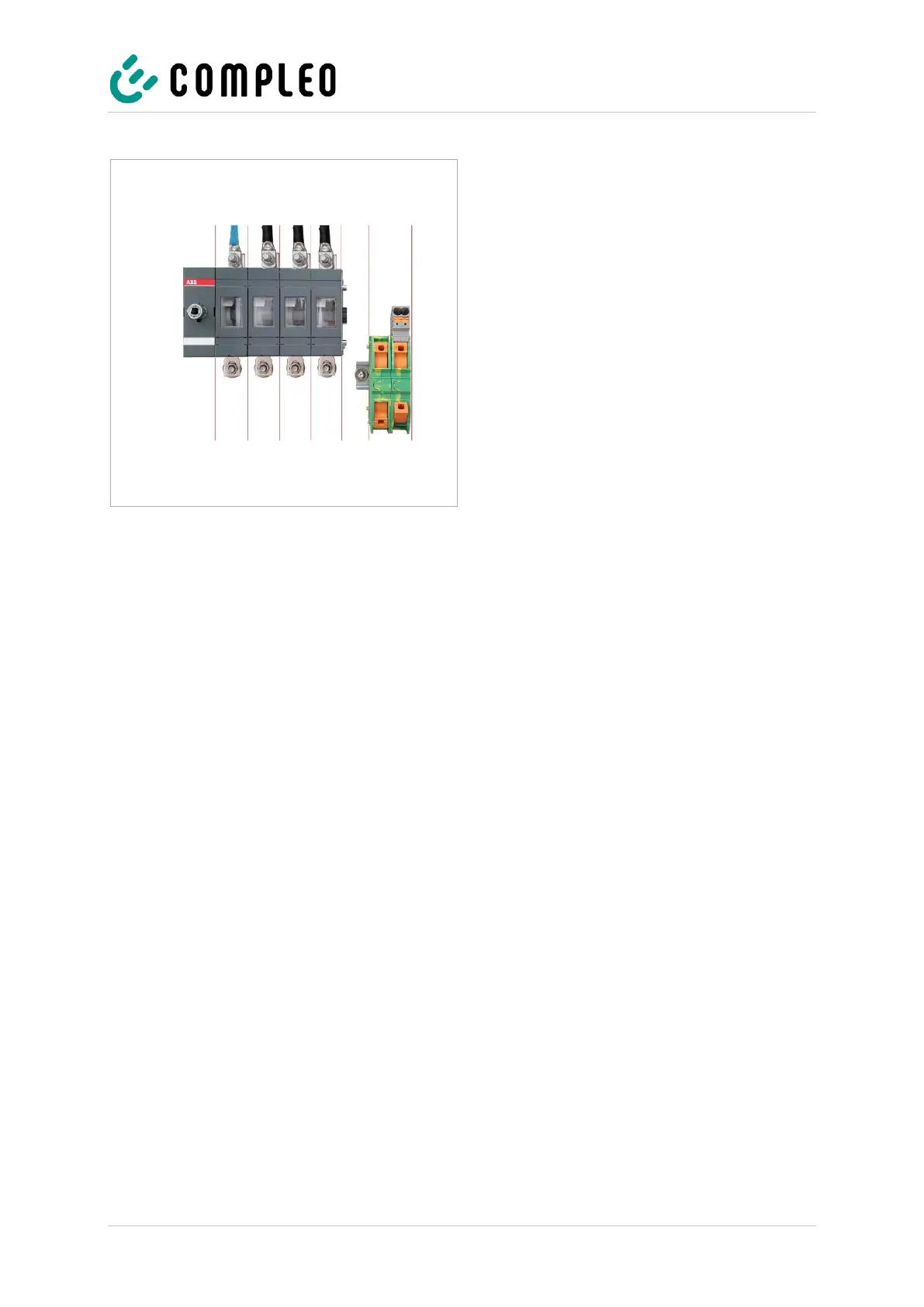

3. Connect all conductors of the power
supply cable to the external wiring side as
shown in the adjacent figure.
The cross-section of the conductor must
be between 10 and 70 mm² (rigid & flexible).
The conductor cross-section must be
selected taking into account the maximum
charging capacity and the length and
installation method of the power supply
cable.
4. Make sure that the individual wires are
connected correctly and the clamping
screws are tightened firmly (M = 20 Nm) or
the push-in terminal is closed correctly
(click).
5. Install surge and lightning protection
according to the installation conditions and
the resulting planning.
6. Replace all covers that may have been
removed previously.
