5.4.2 Installation BM with concrete base
Installation sequence
1. Select a suitable location.
2. Check parts and installation material for completeness.
3. Dig the excavation pit.
4. Check the substrate.
5. Route the power supply cable.
6. Compact and level the ground.
7. Place and align the concrete base.
8. Insert the power supply cable into the concrete base.
9. Fill the excavation pit with excavated material and compact the excavated material.
10. Insert base filling material (mandatory).
11. Place and align the charging system.
12. Insert the power supply cable through the cable gland of the base plate into the charging
system.
12. Fasten the charging system with installation material.
14. Prepare electrical installation.

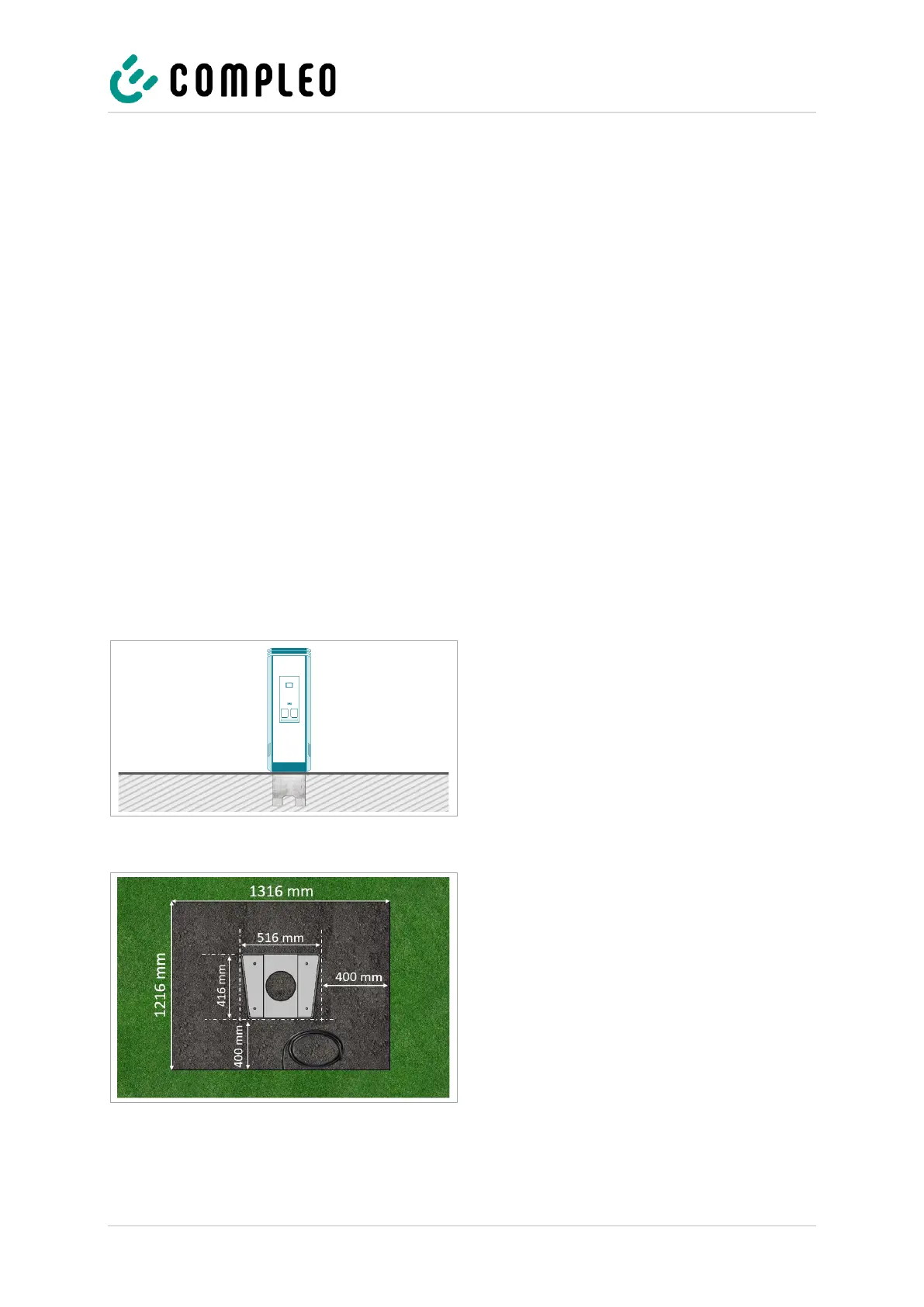

The concrete base is embedded in the ground.
The charging system is then mounted on the
concrete base and finally installed.
Refer to the design drawings in the Annex for the
dimensions of the charging system.
The installation material for fixing is included in
the scope of delivery.
Installation requirements
• Excavation pit
– Width: 1316 mm
– Length: 1216 mm
– Distance to all sides of the concrete
base: 400 mm
– Depth: 600 mm
• Flat support surface of the substrate
To Next Page
