Installation
44 D111XXXXXX | 05 2023-05
Carrying out installation
1. Dig an excavation pit and prepare it for the
stable installation of the charging system.
2. Embed the concrete base into the
excavation pit with suitable lifting gear.
– For orientation and alignment, the
upper edge of the ground level and
the operating side of the charging
system are marked on the concrete
base
– Concrete base protrudes 20 mm
from the ground
3. Insert the power supply cable into or
through the concrete base.
4. Fill the excavation pit with excavated
material.
– Make sure that the filling of the pit
reaches the surrounding ground
level.
5. Fill the last 300 mm inside the concrete
base with concrete base filling material.
– ½ sack of filling material (Compleo)
– The use of the filling material is
mandatory as it reduces the
penetration of moisture into the
charging system from the ground.
6. Compress the excavation material around
the charging system.

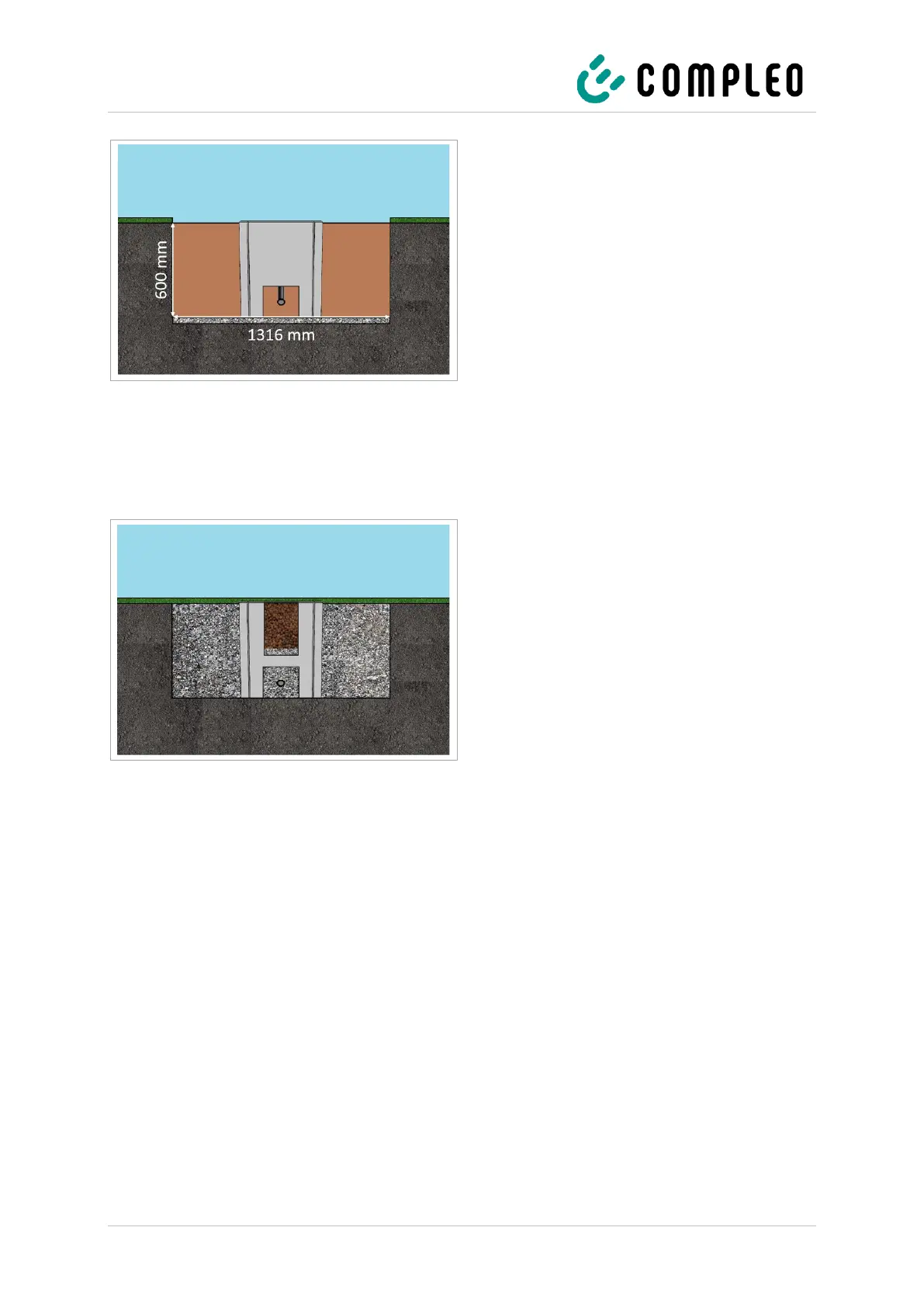

Fig. 17: Excavation pit filled with excavated material
