Installation
2023-05 D111XXXXXX | 05 55

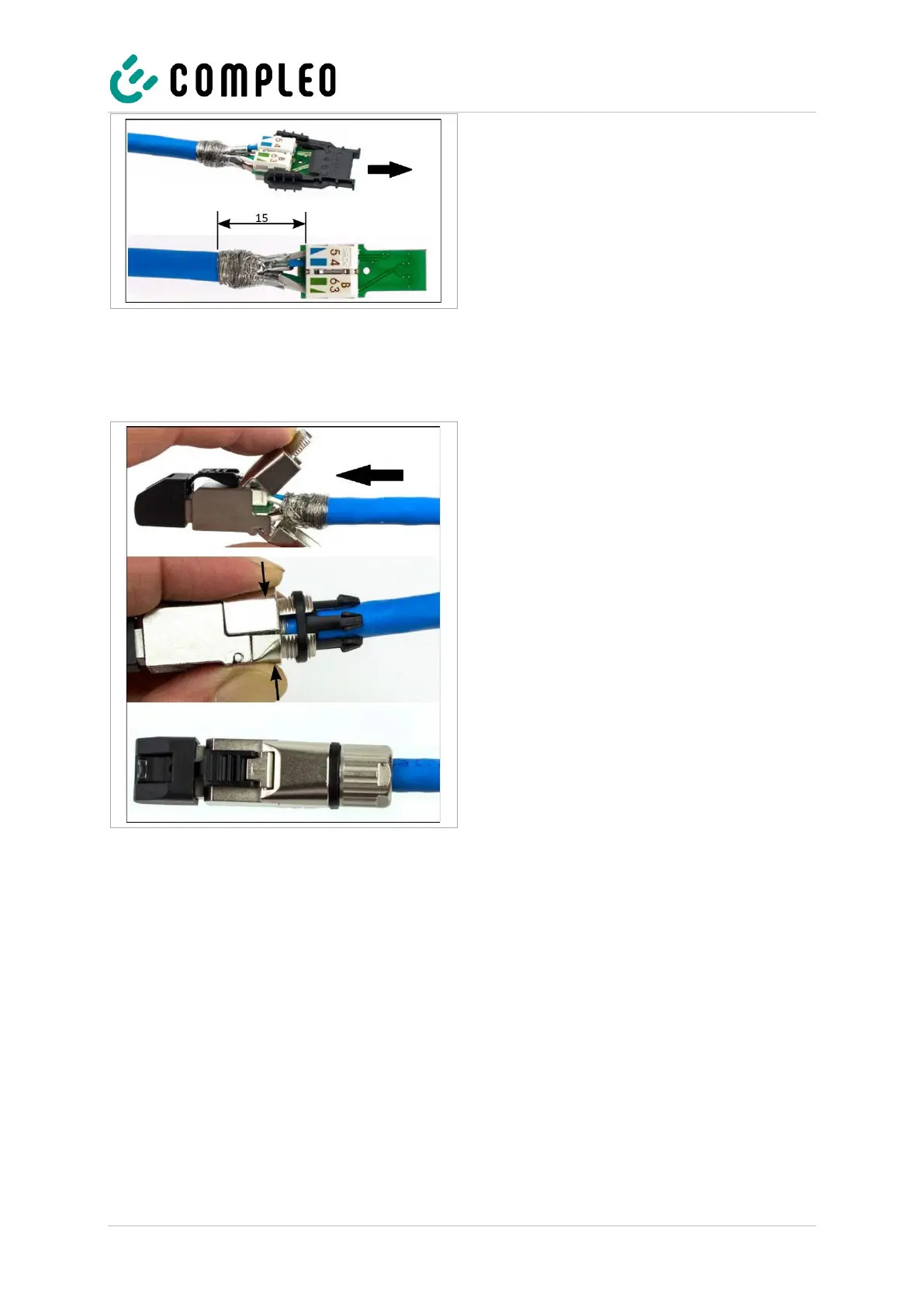

– The distance between the beginning
of the wound braided shield and the
wire manager must not exceed
15 mm.
8. Cut off the wires protruding from the wire
manager with an electric cutter so that the
ends are flush.
The protrusion must not exceed 0.5 mm.
9. Remove the black cap from the cable
manager.
10. Push the wire manager into the RJ45
connector housing.
11. Close the fastener around the wound
braided shield.
Make sure that no strands of the braided
shield protrude from the connector.
12. Push the strain relief onto the fastening of
the connector.
12. Attach the gland to the connector. The
torque to be applied is approx. 1 Nm and
can be achieved with an open-end spanner
size SW13.
The electrical connection is completed and the charging system can be put into operation.
