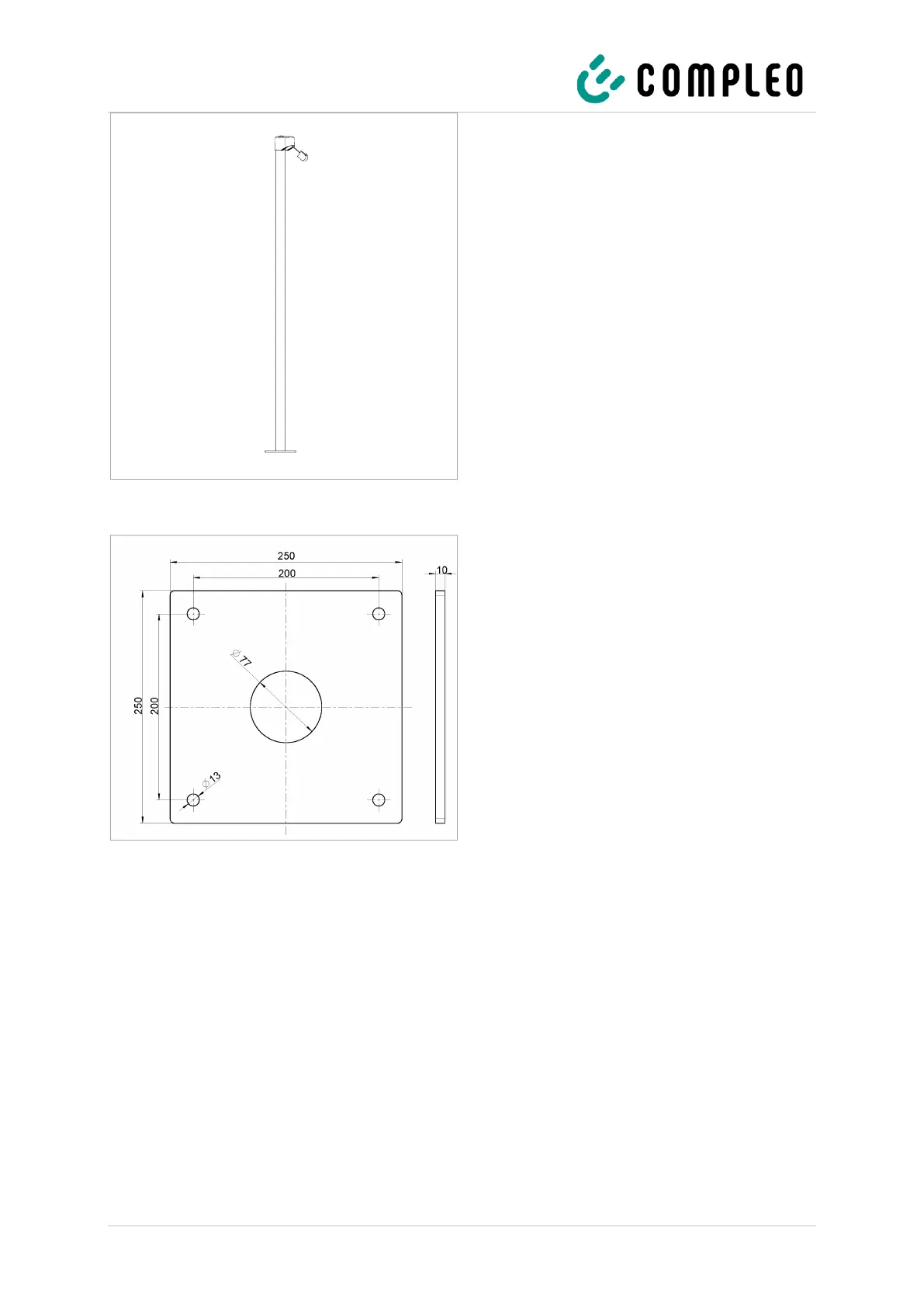

2. Mark the hole pattern of the base plate on
the ground.
3. Move the CMS to the side so that the
markings on the ground are accessible.
4. Drill holes on the markings using a suitable
drilling tool.
– Drill hole diameter: according to the
manufacturer's specification of the
ground anchor
– Drill hole depth: according to the
manufacturer's specification of the
ground anchor
5. Place the CMS over the inserted ground
anchors.
6. Align the CMS so that the mounting holes
correspond with the mounting points of
the ground anchors.
7. Place washers over the mounting holes in
the base plate, push the screw
attachments through and hand-tighten
them.
8. Check the correct fit and tighten the screw
connections crosswise. Observe the
corresponding tightening torques!
