Operation
2023-05 D111XXXXXX | 05 73

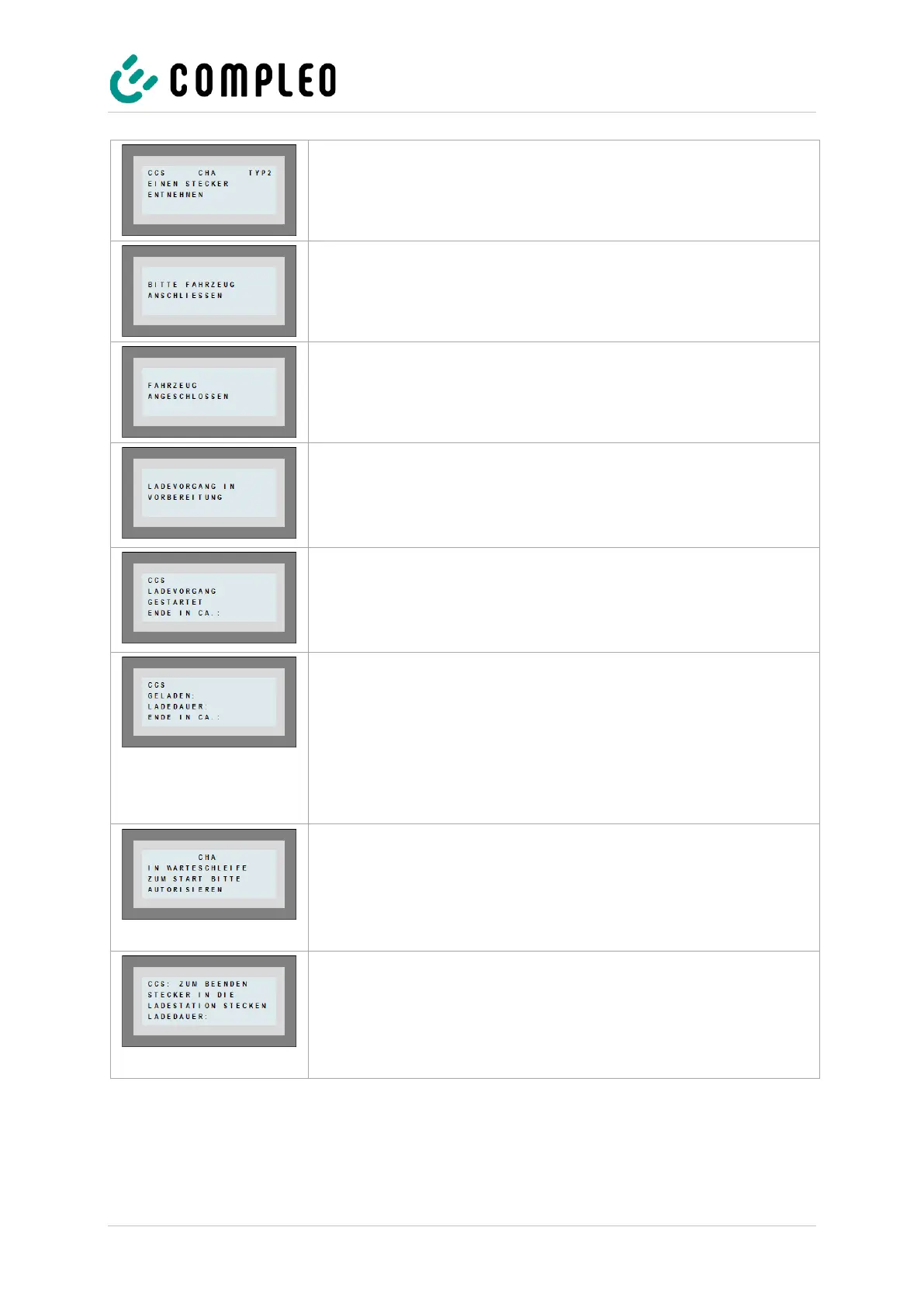

The charging system indicates the "CCS - CHA - Type 2 + Remove a
plug" state.
• A plug of any charger interface can be removed.
The charging system indicates the "Please connect vehicle" state.
• The plug of the corresponding charger interface should be
connected to the vehicle.
The charging system indicates the "Vehicle connected" state.
• The vehicle has been correctly connected to the charger
interface.
The charging system indicates the “Preparing charging process"
state.
• The vehicle and the charging system start communication
and parameters of the charging process are exchanged.
The charging system indicates the "CCS - Charging process started
+ Ending in approx:" state.
• The charging process has been started at the corresponding
charger interface. The expected end is displayed.
The charging system indicates the "CCS – Charged: + Charging
duration
+ Ending in approx:“.
• The charging process at the corresponding charger interface
is in progress. The charged capacity is displayed. The
charging duration is displayed. The expected end is
displayed.
The charging system indicates the "CHA – In queue + Please
authorise to start" state.
• The charging process at the corresponding charger interface
can be started after the parallel DC charging process is
completed. Authorisation is required.
The charging system indicates the "CCS - Plug the plug in the
charging station to end + Charging duration:" state.
• The charging process can be stopped at the corresponding
charger interface. The plug must be plugged into the
charging station. The charging duration is displayed.
To Next Page
