DT-4500 Series C- and Ku-Band Down Converters MN/DT4500.IOM
Appendix A Revision 2
A–4

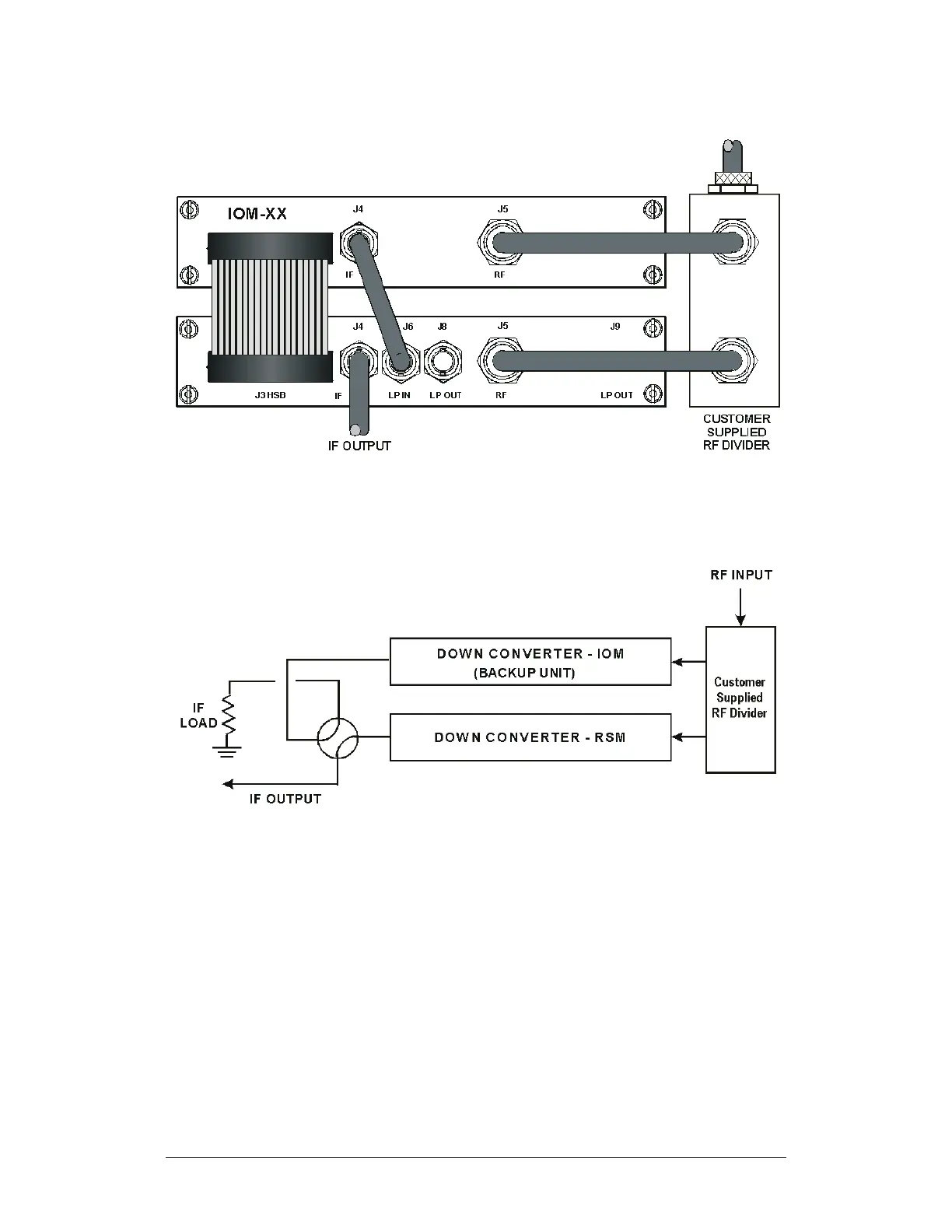

Figure A-1. 1:1 Redundant Configuration –Single Source IF Output (with
IOM and RSM)
Figure A-2. 1:1 Redundant Configuration Diagram – Single Source IF
Output (with IOM and RSM)
