DT-4500 Series C- and Ku-Band Down Converters MN/DT4500.IOM
Front and Rear Panel Connectors Revision 2
4–15
4.2.3.1 DT-4500 Series Cable Connections

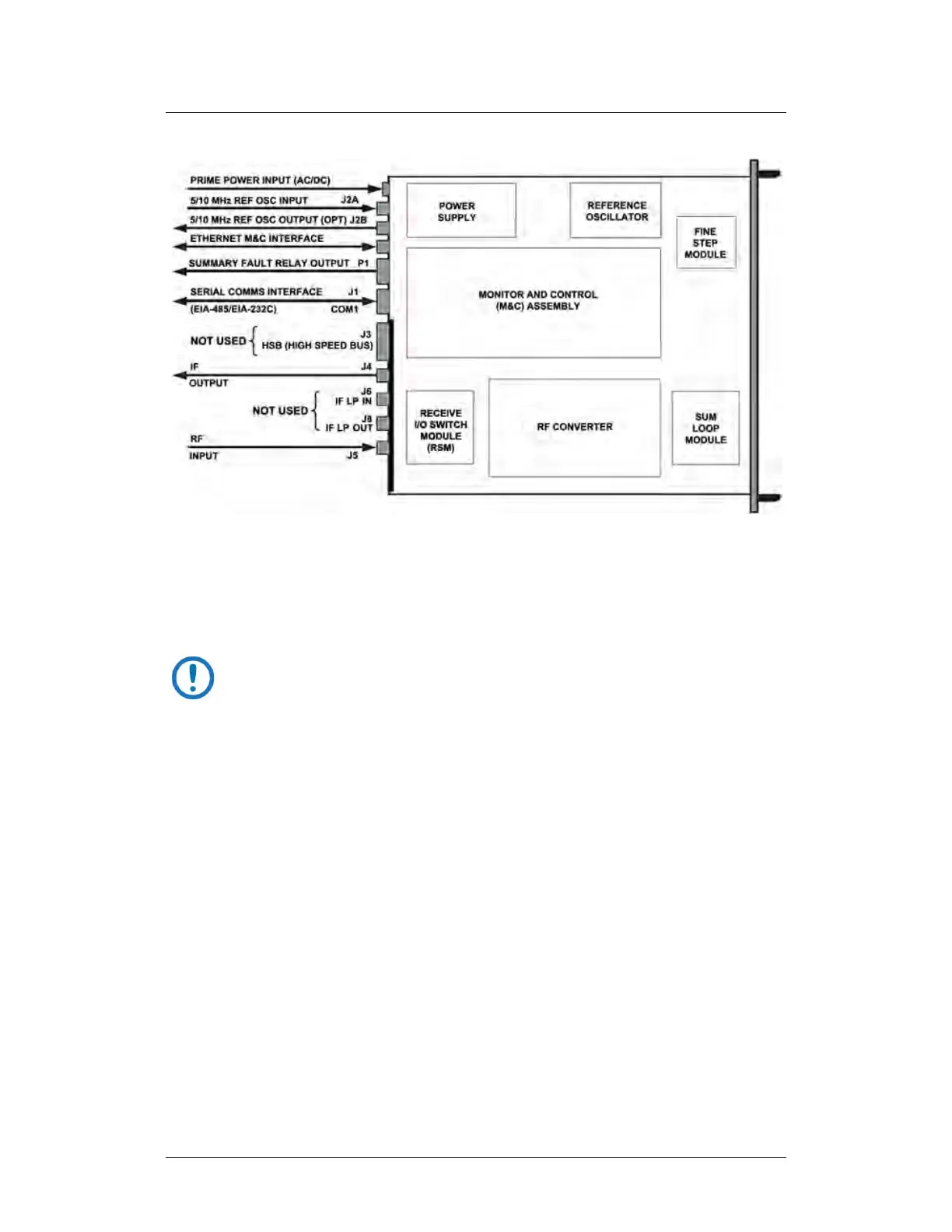

Figure 4-15. DT-4500 Series Cabling Example (with RSM)
Figure 4-15 provides a cabling connection example for the DT-4500 Series Down
Converters. This example depicts use of a Receive Switch Module (RSM) in a
standalone configuration – the module cabling requirements will vary. All other
cabling to the available rear chassis connectors is identical across all applications.
Contact Comtech EF Data Product Support for cabling instructions
specific to your converter application.
