4.2 Unit Connectors
External cables are attached to connectors provided on the rear and front panels
of the unit (Figure 4-5).
The DT-4500 chassis, as initially released (Figure 4-6), does not provide
an ‘Ethernet’ RJ-45 port. Ethernet interface operation is not available on
these legacy products.
(TOP) Rear Panel with Optional -48VDC Unit Power Interface
(CENTER) Rear Panel with Standard AC Unit (with IOM)
(BOTTOM) Front Panel

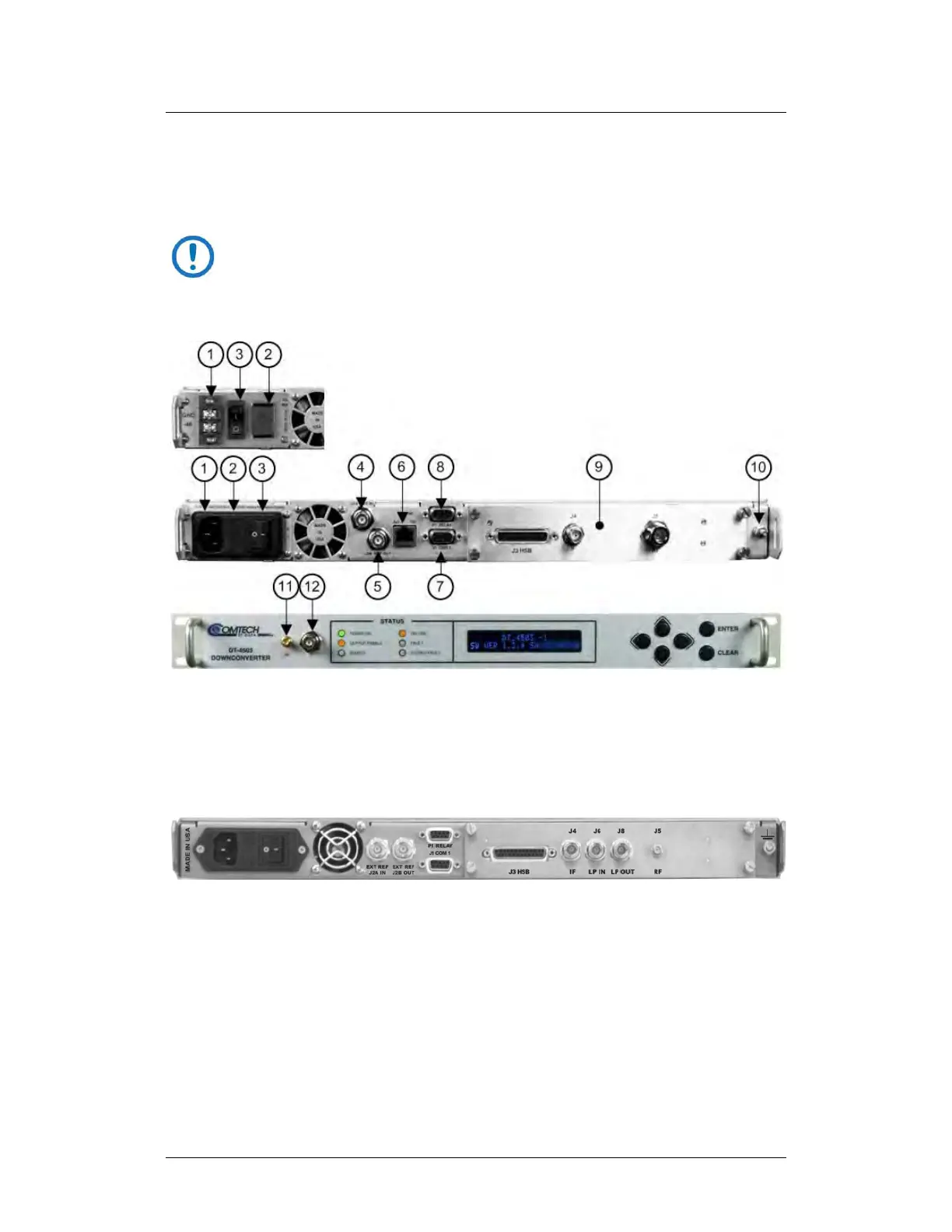

Figure 4-5. DT-4500 Series Rear and Front Panels (DT-4503 Current
Production Chassis shown)
Figure 4-6. DT-4500 Series Rear Panel – Initially Released Chassis
(OBSOLETE) (with RSM)
