DT-4500 Series C- and Ku-Band Down Converters MN/DT4500.IOM
Introduction Revision 2
1–2
1.2 Functional Description
Figure 1-2 shows the DT-4500 chassis with its top cover removed. The major
chassis components and module assemblies are:
• Signal Path Module
• Step Loop Module
• Monitor & Control Assembly
• Removable “Personality” Module (IOM, PSM, TSM, EQM, or RSM installs
into rear chassis slot)
• Reference Oscillator Assembly
• Sum Loop Module
• Power Supply Assembly

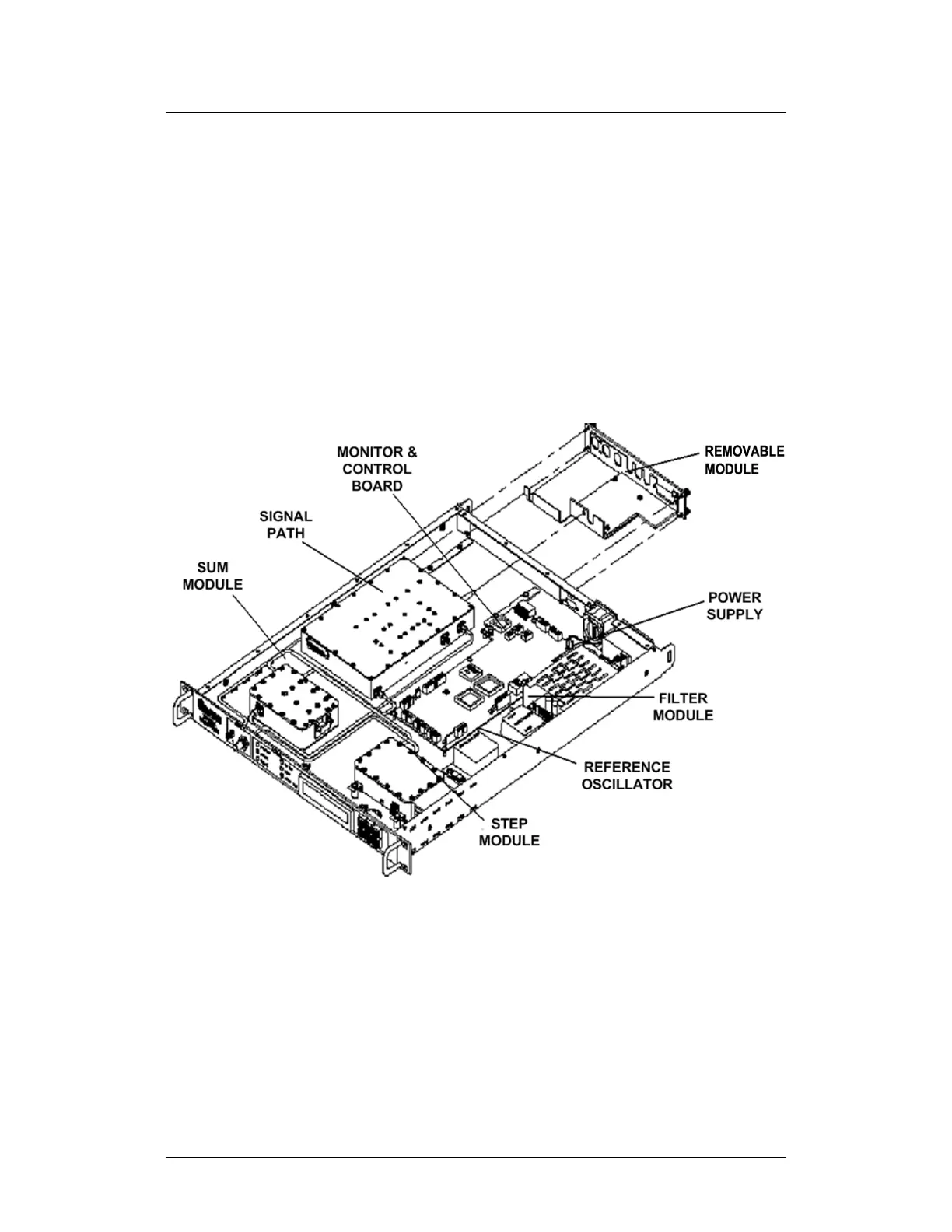

Figure 1-2. DT-4500 Series Down Converter Physical Configuration
