Item 8 – ‘P1 | RELAY’ Utility Connector
Use this D-Sub 9-pin female (DB-9F) connector to access the Form C Alarms
(relay closures). The mating connector is a DB-9M connector.
Table 4-5. ‘P1 | RELAY’ Pinout
Pin #
Description
Notes
1
Summary Fault NC
1) Pin 1 to Pin 6: FAULT
2) Pin 2 to Pin 6 OK (NO FAULT)
3) Pin 7 to Pin 5: Forced Faults (typically used
with external group delay equalizers)
2
Summary Fault NO
3
4
5
Ground
6 Summary Fault COM
7
EXT_FLT_IN#
8
9
Item 9 – Removable Module
See Sect.4.2.4 for information about these removable “personality”
modules.
Item 11 – Front Panel RF Sample Test Point Connector

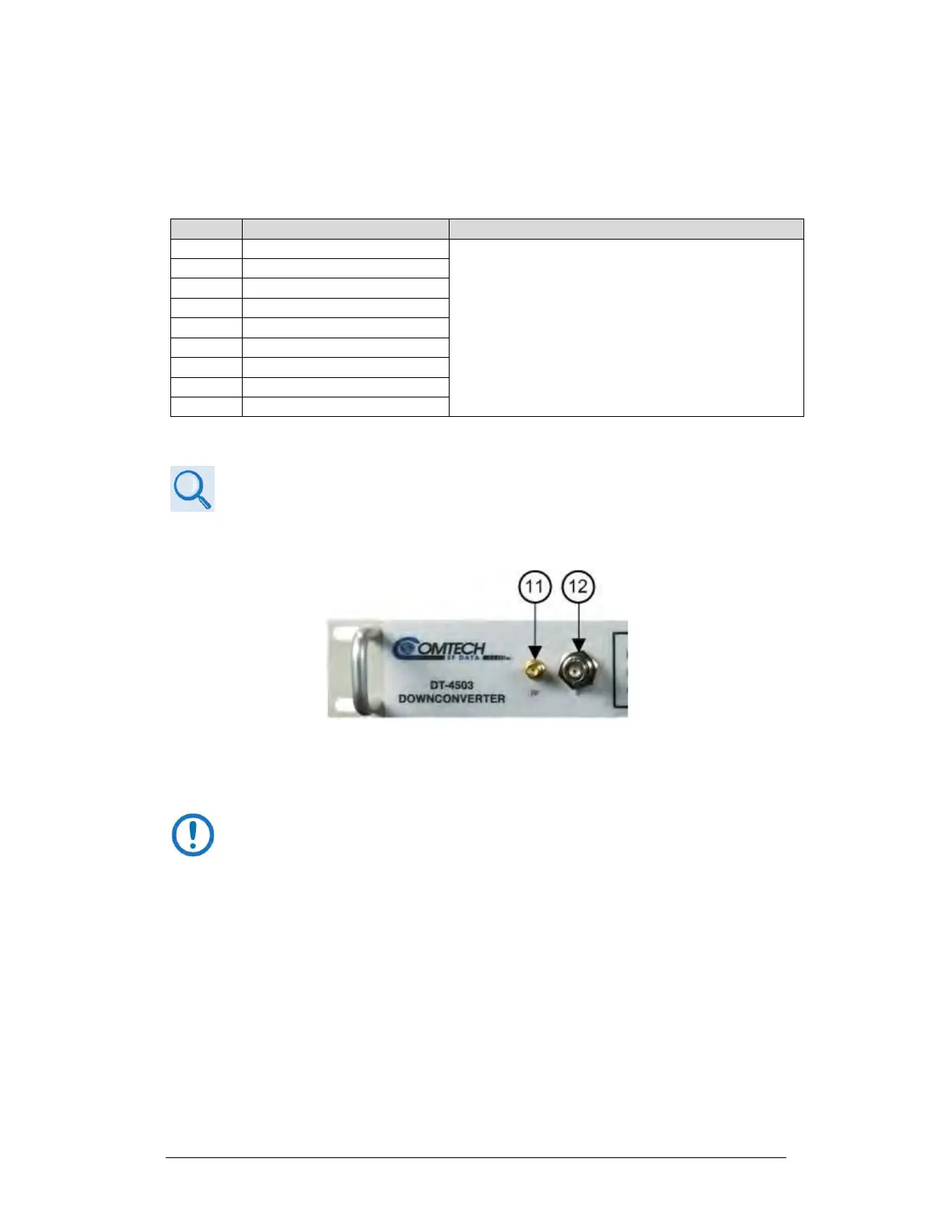

Figure 4-14. Front Panel Sample Test Point Connections
As shown in Figure 4-5 and Figure 4-14 (Item 11): This female Type ‘SMA’
connector (-20 dBc nominal) provides the user RF test point interface.
An optional RF LO monitor (0 dBm nominal) is available in replace of
the ‘RF’ Sample Test Point.
Item 12 – Front Panel ‘IF’ Sample Test Point Connector
As shown in Figure 4-5 and Figure 4-14 (Item 12): This female BNC connector
(-20 dBc nominal) provides the user IF test point interface.
