B.2.4 Removable “Personality” Modules
See Chapter 2. SPECIFICATIONS or contact Comtech EF Data Product
Support for information about the module(s) specific to your system.
Depending on the application, the rear panel module slot accepts an
Input/Output Module (IOM), Polarity Switch Module (PSM), Transmit Switch
Module (TSM), Equalizer Module (EQM), or Receive Switch Module (RSM). The
converter RF, IF, and High-Speed Bus (HSB) connectors are integral to the
installed module. These “personality” modules (Figure B-3) are available for both
non-redundant (also referred to as single thread or standalone) and redundant
applications.

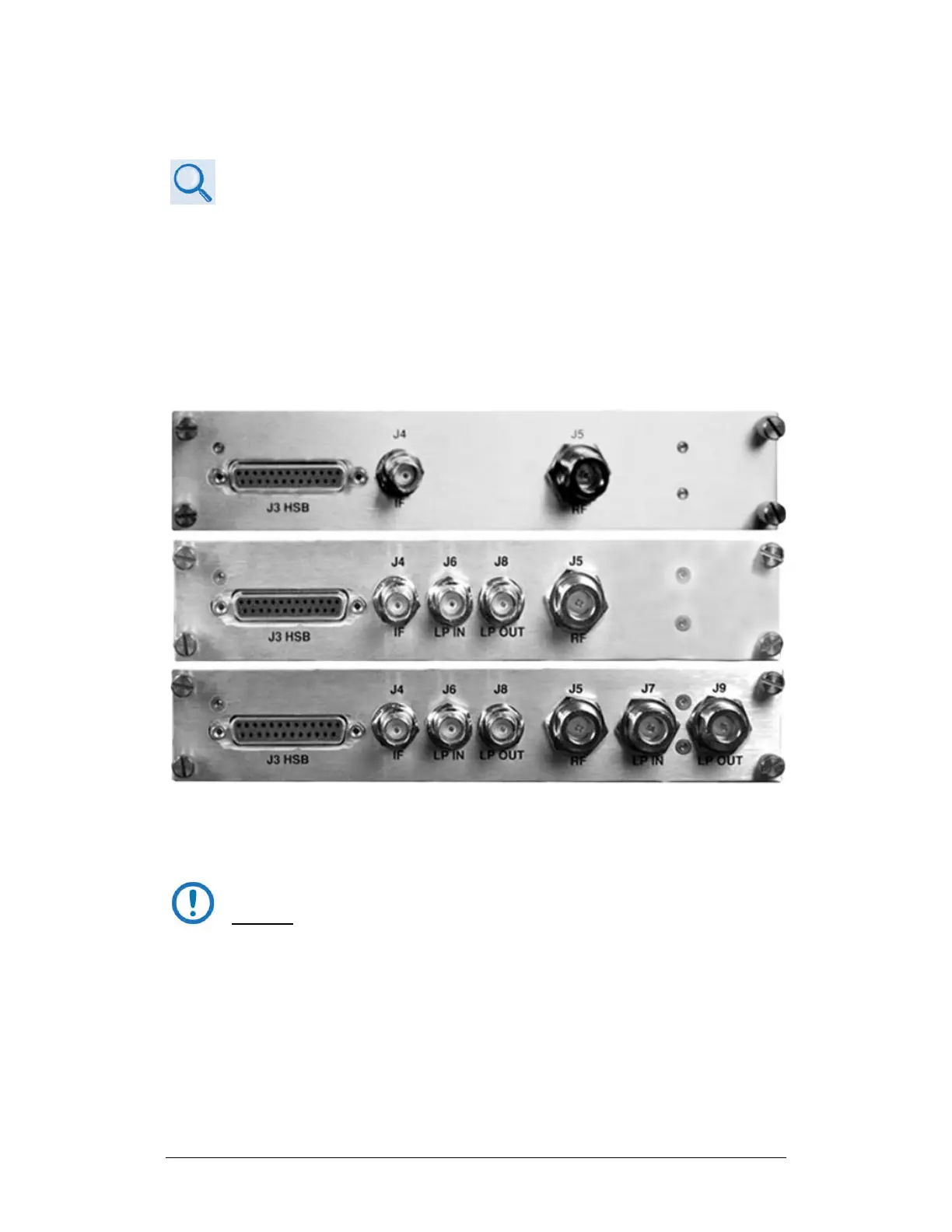

(TOP) Input/Output Switch Module (IOM)
(CENTER) Receive Switch Module (RSM)
(BOTTOM) Transmit Switch Module (TSM)
Figure B-3. “Personality” Module Examples
When you install a removable module into the rear panel module slot,
DO NOT
use a screwdriver to tighten the module mounting thumbscrews
– these screws are designed to be hand-tightened only.
