Copyright © 2014 congatec AG IGX1m02 29/134

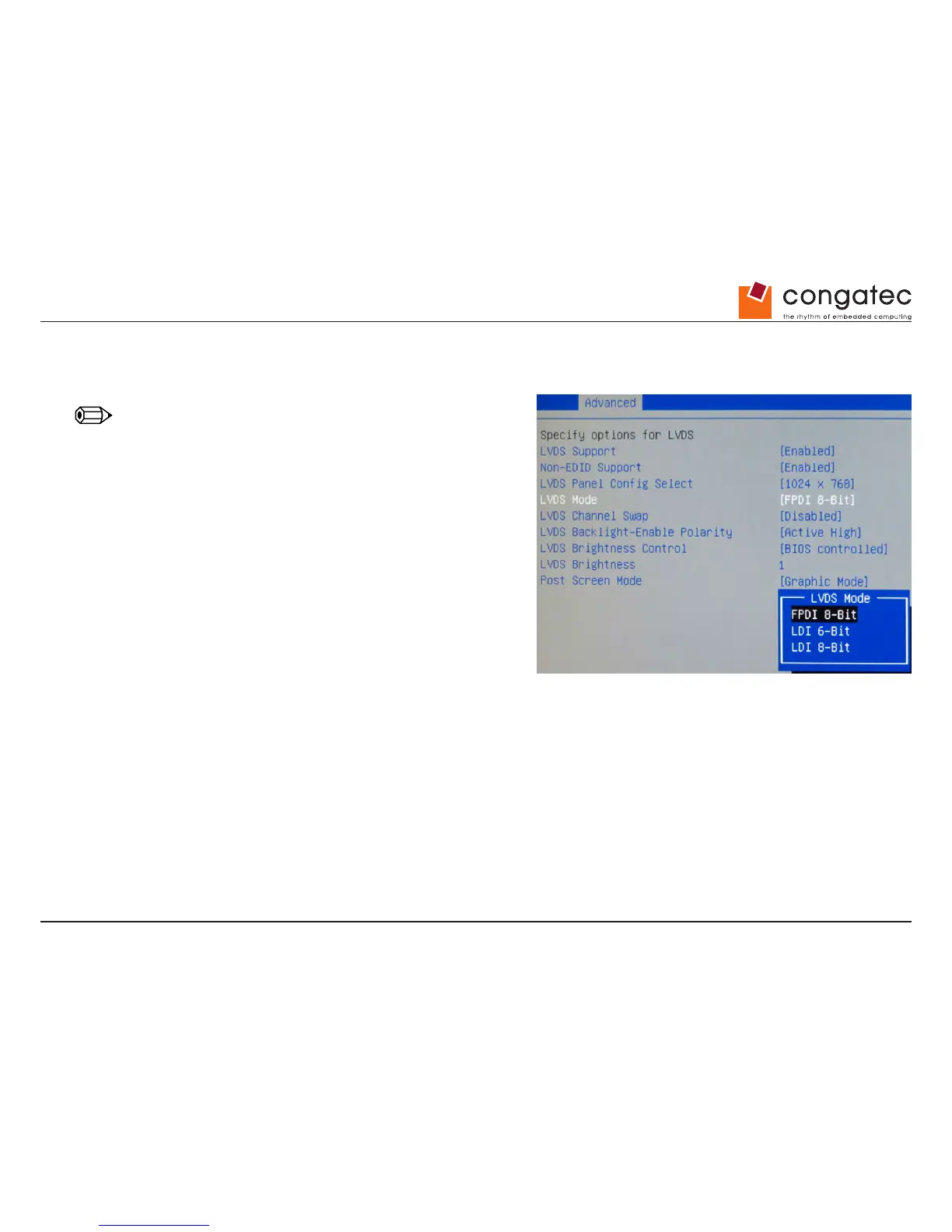

LVDS Mode:
The correct mode (FPDI/LDI) must be set for the attached LVDS panel.
Note
This setting is also required if customized LVDS timings are implemented
(LVDS tool).
