Congatec conga-IGX - LVDS Brightness Settings; LVDS Brightness Control; LVDS Brightness Level

Copyright © 2014 congatec AG IGX1m02 30/134

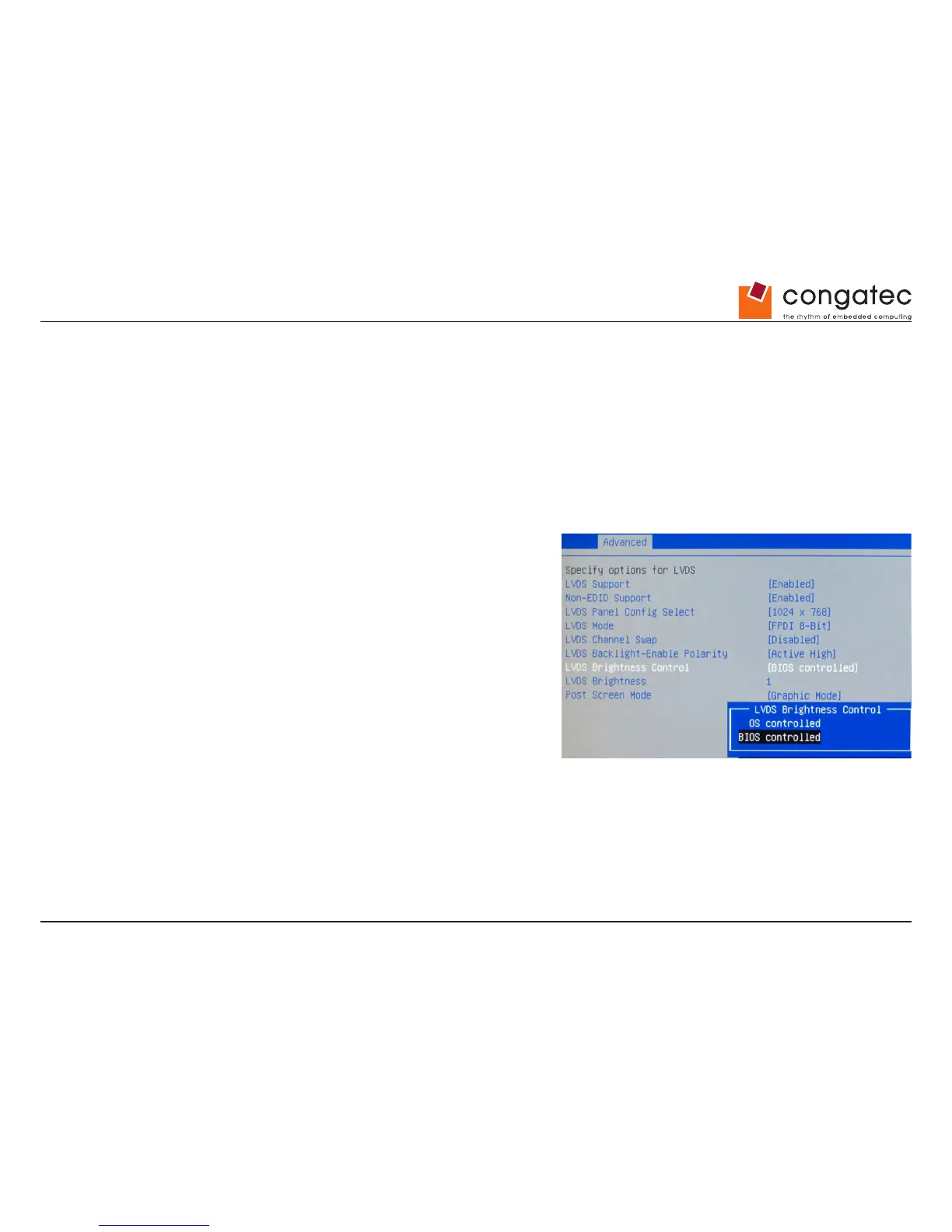

LVDS Brightness Control:
Select if the LVDS backlight brightness is controlled by BIOS or by the OS.
LVDS Brightness:
Set the level for the LVDS backlight brightness for “BIOS controlled” mode.
1 = minimum voltage level (0V) resp. minimum PWM level
255 = maximum voltage level (4V) resp. maximum PWM level
