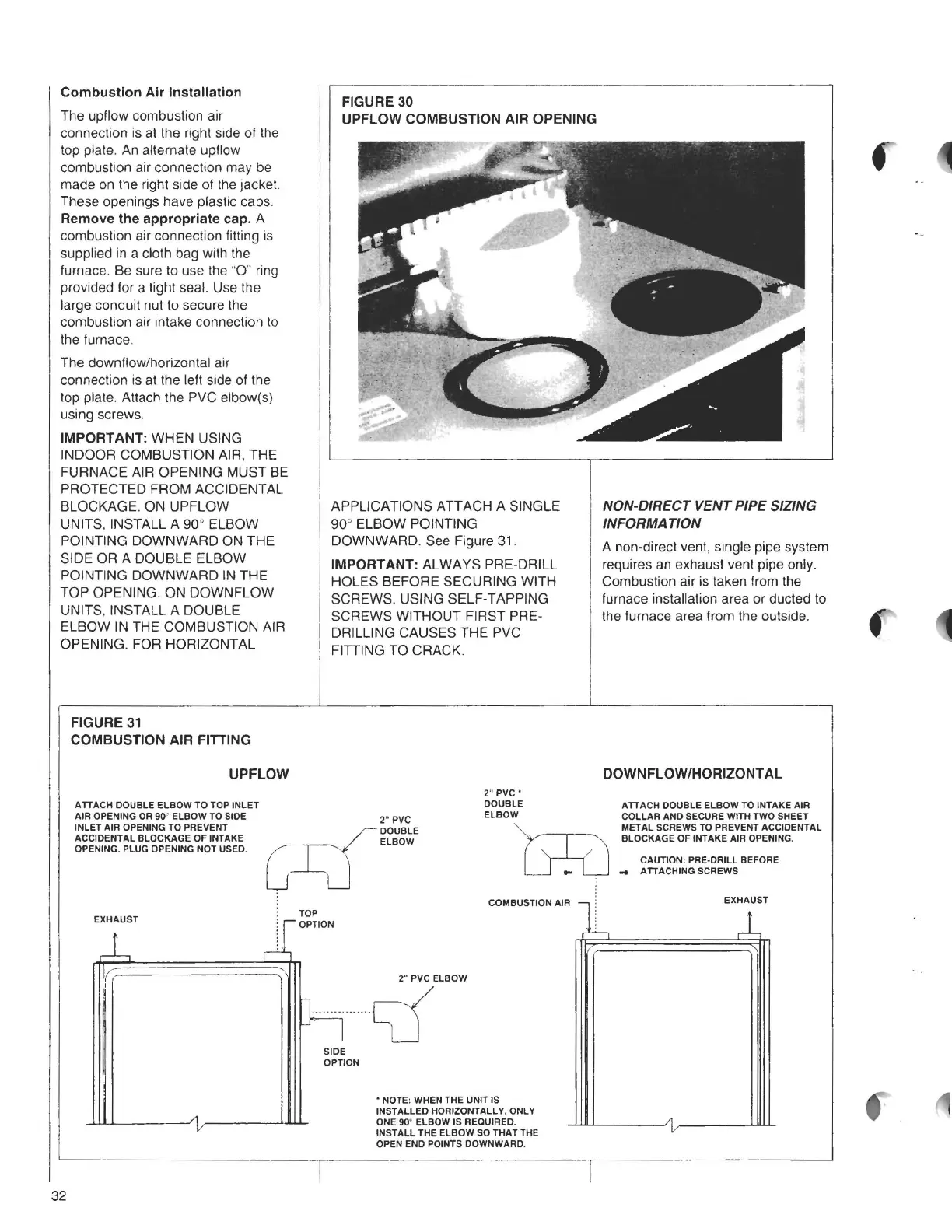

Combustion Air Installation
The upflow combustion air
connection is at the right side of the
top plate. An alternate upflow
combustion air connection may be
made on the right side of the jacket.
These openings have plastic caps.
Remove the appropriate cap. A
combustion air connection fitting is
supplied in a cloth bag with the
furnace. Be sure to use the "O" ring
provided for a tight seal. Use the
large conduit nut to secure the
combustion air intake connection to
the furnace.
The downflow/horizontal air
connection is at the left side of the
top plate. Attach the PVC elbow(s)
using screws.
IMPORTANT: WHEN USING
INDOOR COMBUSTION AIR, THE
FURNACE AIR OPENING MUST BE
PROTECTED FROM ACCIDENTAL
BLOCKAGE. ON UPFLOW
UNITS, INSTALL A 90" ELBOW
POINTING DOWNWARD ON THE
SIDE OR A DOUBLE ELBOW
POINTING DOWNWARD IN THE
TOP OPENING. ON DOWNFLOW
UNITS, INSTALL A DOUBLE
ELBOW IN THE COMBUSTION AIR
OPENING. FOR HORIZONTAL
FIGURE 31
COMBUSTION AIR FITTING
UPFLOW
ATTACH DOUBLE ELBOW TO TOP INLET
AIR OPENING OR 90" ELBOW TO SIDE
INLET AIR OPENING TO PREVENT
ACCIDENTAL BLOCKAGE OF INTAKE
OPENING. PLUG OPENING NOT USED.
EXHAUST
SIDE
OPTION
FIGURE 30
UPFLOW COMBUSTION AIR OPENING
APPLICATIONS ATTACH A SINGLE
90° ELBOW POINTING
DOWNWARD. See Figure 31.
IMPORTANT: ALWAYS PRE-DRILL
HOLES BEFORE SECURING WITH
SCREWS. USING SELF-TAPPING
SCREWS WITHOUT FIRST PRE-
DRILLING CAUSES THE PVC
FITTING TO CRACK.
LJ
TOP
OPTION
2" PVC
DOUBLE
ELBOW
2" PVC ELBOW
SJ
2" PVC'
DOUBLE
ELBOW
~
' NOTE: WHEN THE UNIT IS
INSTALLED HORIZONTALLY, ONLY
ONE 90' ELBOW IS REQUIRED.
INSTALL THE ELBOW SO THAT THE
OPEN END POINTS DOWNWARD.
NON-DIRECT VENT PIPE SIZING
INFORMA T/ON
A non-direct vent, single pipe system
requires an exhaust vent pipe only.
Combustion air is taken from the
furnace installation area or ducted to
the furnace area from the outside.
DOWNFLOW/HORIZONT AL
ATTACH DOUBLE ELBOW TO INTAKE AIR
COLLAR AND SECURE WITH TWO SHEET
METAL SCREWS TO PREVENT ACCIDENTAL
BLOCKAGE OF INTAKE AIR OPENING.
CAUTION: PRE-DRILL BEFORE
.. ATTACHING SCREWS
32
