3.1 Connect the scanner directly to printer(s) - Stand Alone Copier

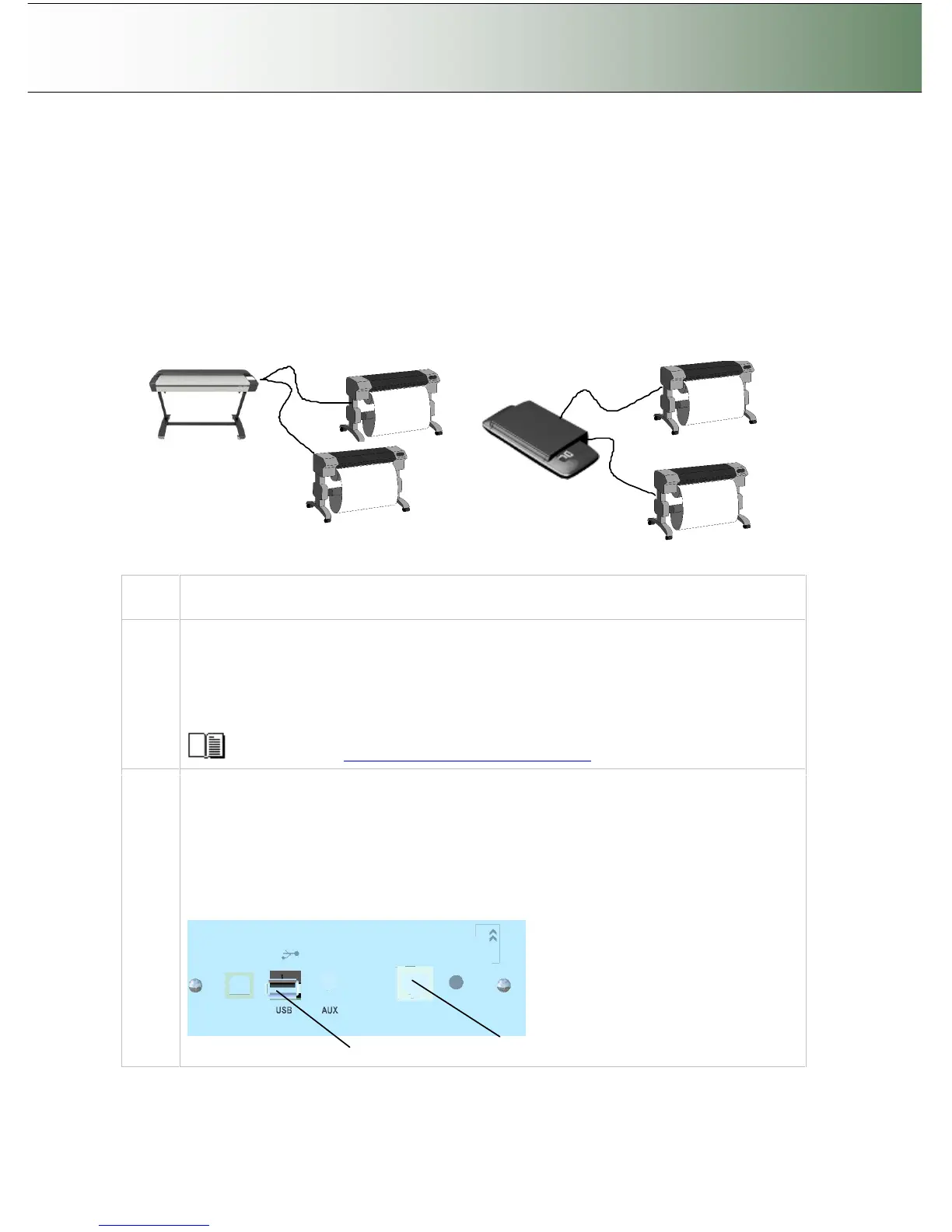

Components: Wide format copy scanner and one or two large format printers. The Scanner is connected
directly (no PC or network) to one or two printers.
Usage: For copying large format documents. This configuration can create printed output only. All
operation takes place from the iJET Panel (scanner).
System Requirements:
Wide Format Copy scanner
Compatible large format printer(s)
USB cable or twisted LAN cable or both. - for connecting the scanner to the printer(s)
Step Description – Stand Alone Copier Configuration
1
Set up your scan station
Your wide format copy scanner should be placed either on the specially designed stand-alone
floor stand or on a sturdy table. For sheet-feed models, make sure there is enough space behind
the scanner to allow the media to run out.
HD4230i: If you own a smart card, make sure that the smart card is in place. See the
instructions that came with the smart card.
See the sections “Physical Placement of the Scan Station”
2
Connection to printer– scanner end
Connect the USB cable or LAN cable to the scanner. Check your printer’s interface options to
select which of these to use. For USB use the USB host (output) port which is the flat rectangle
shaped socket. See the document: “NOTE ON INTERFACE CABLES” for instructions on the
specific interface cable types to use with this configuration.
You can attach two printers at a time – a B&W printer and a Color printer. Note that the scanner
has only one USB out connection so a second printer will have to be able to use the LAN
connection.
USB host port - (output to printer)
