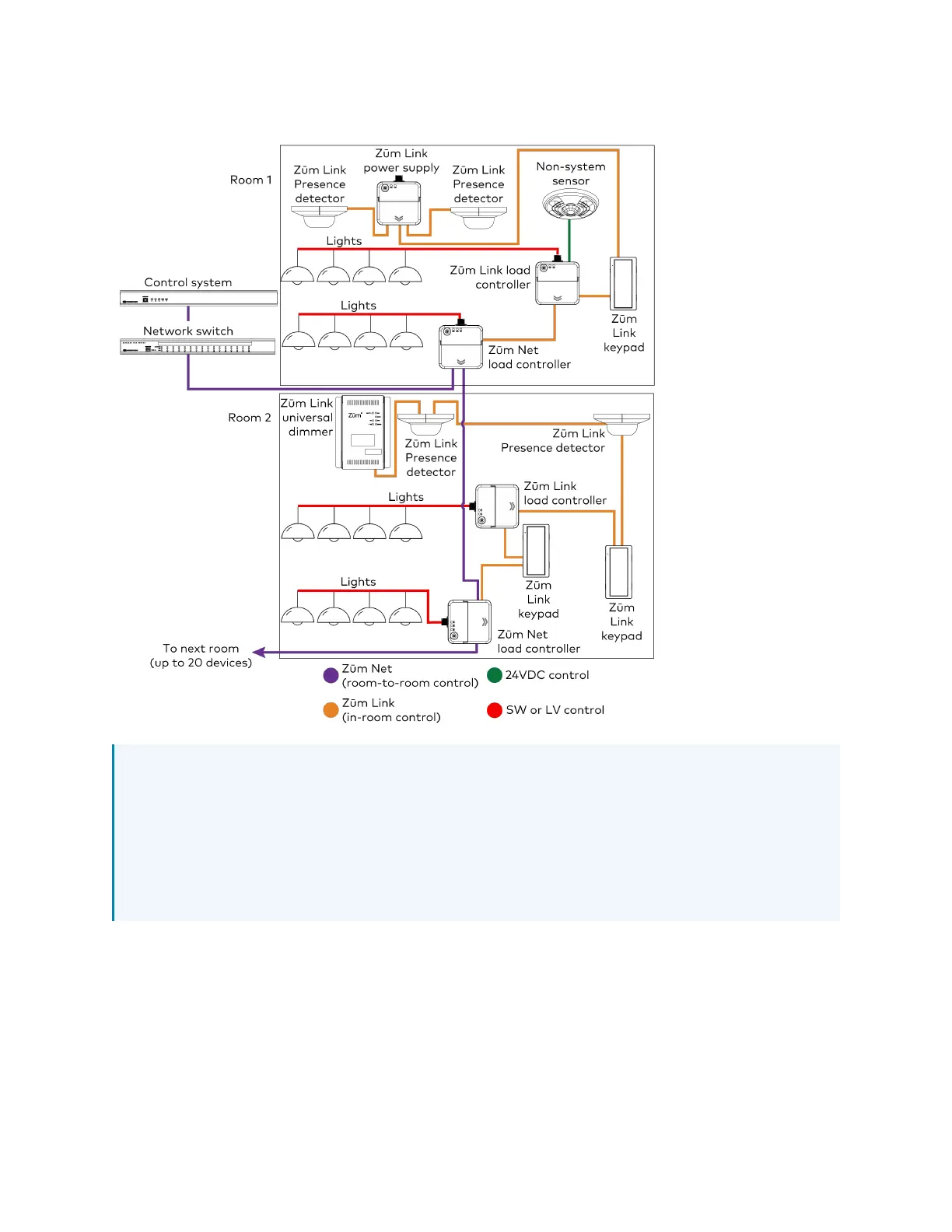

Zūm Wired System Diagram
NOTES:
l
Daisy-chain up to 20 Zūm Net devices (up to 328ft (100m) between Zūm Net devices)
with purple CBL-CAT5E-ZUMNET-P RJ-45 cables (sold separately).
l
Do not exceed three network switches between a ZUM-HUB4 and a Zūm Net device.
l
System sensors communicate digitally via Zūm Link. Non-system sensors
communicate via an analog connection on a Zūm Wired load controller.
Test the Loads
To verify system wiring, test the loads. Tap the TEST button to turn the connected loads on and
off. Press and hold the TEST button to cycle the connected dimmers.
