Keypad Installation
The ZUMLINK-KP mounts to a standard electrical box. Rocker buttons/button trees and bezels
are available in almond, black, gray, red, and white. The button trees also have options for blank
buttons, standard pad printed labels, or custom engravings. A finished installation requires a
decorator-style faceplate (FP-G series, sold separately).
In the Box
Qty. Description
1 ZUMLINK-KP, Zūm® Zūm® Wired Keypad with Link Communication, Rocker Button
Additional Items
2 Screw, 6-32 x 3/4 in., Truss Head, Combo (2009211)
Install the Keypad
The ZUMLINK-KP comes preassembled with the white ZUMLINK-BTNR rocker button. If another
rocker button or button tree is required, refer to Replace the Rocker Button/Button Tree and
Bezel on page 115.
WARNINGS:
l
To avoid fire, shock, or death, turn off the power at the circuit breaker or fuse and test
that the power is off before wiring!
l

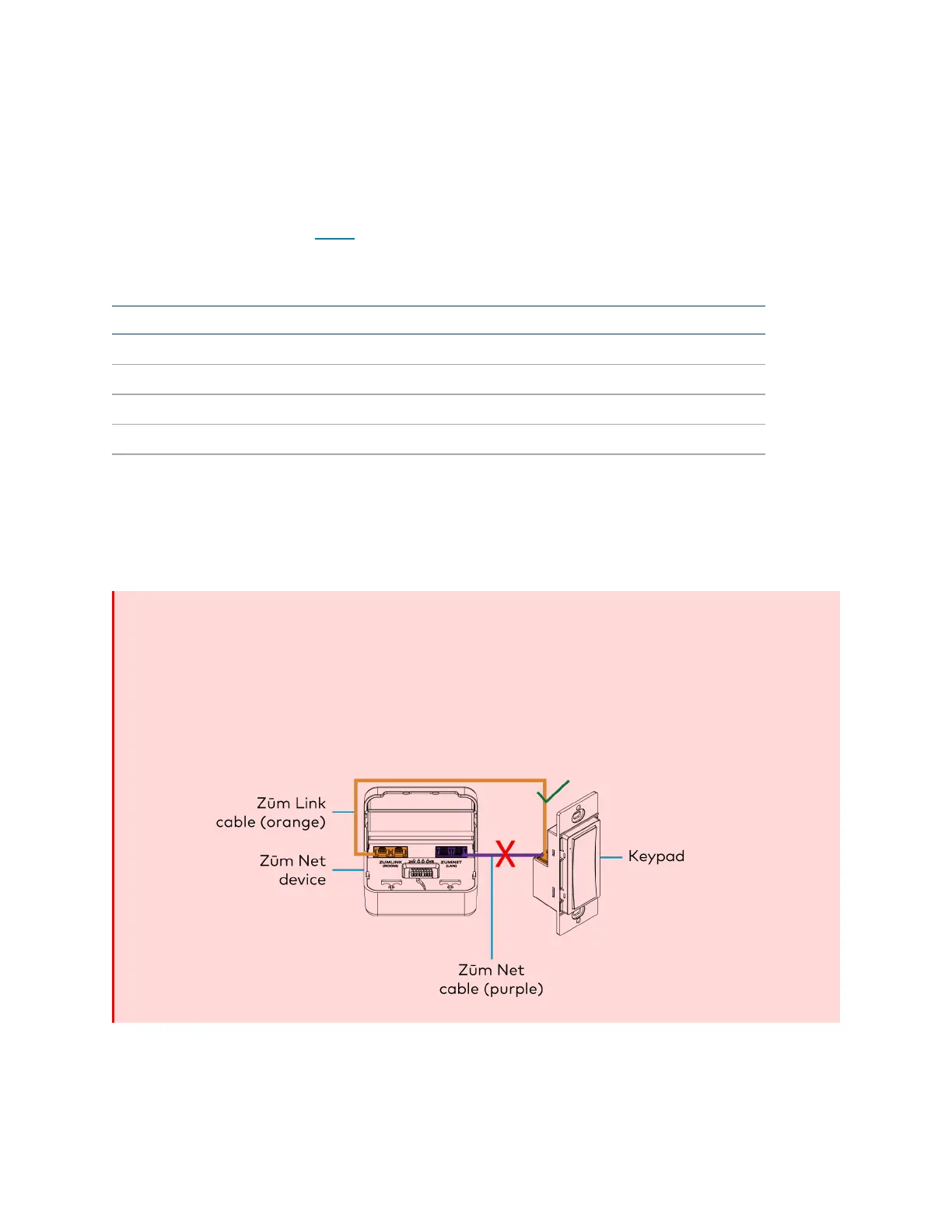

Do NOT connect standard Ethernet ports on network-based devices to the orange
Zūm Link ports on any Zūm Link or Zūm Net device. Also, do NOT connect the purple
Zūm Net ports on the Zūm Net device to the orange Zūm Link ports on any Zūm Link
device. These connections may damage network devices.
