Application Scenarios
Refer to the following illustrations for common applications.

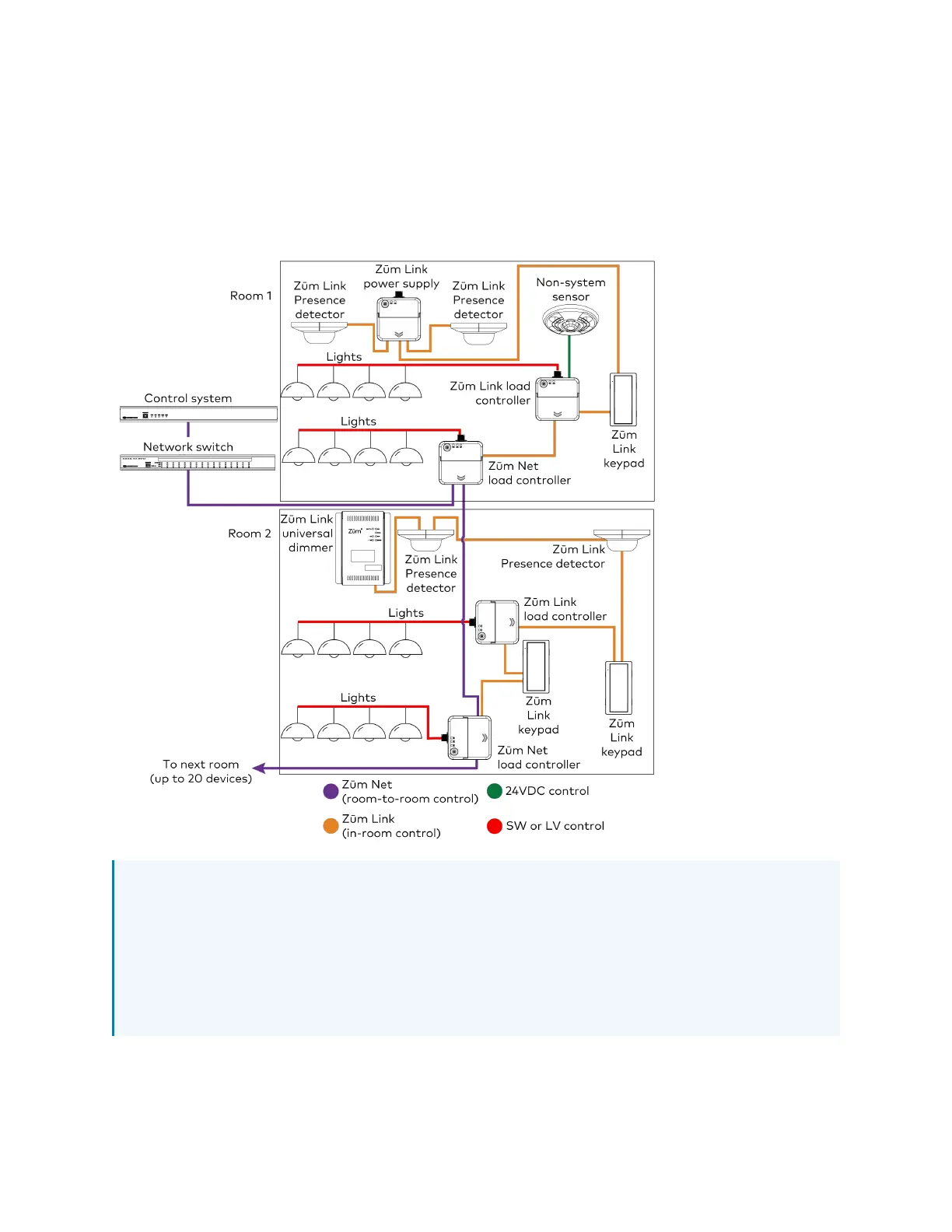

Zūm Wired System Diagram
NOTES:
l
Daisy-chain up to 20 Zūm Net devices (up to 328ft (100m) between Zūm Net devices)
with purple CBL-CAT5E-ZUMNET-P RJ-45 cables (sold separately).
l
Do not exceed three network switches between a ZUM-HUB4 and a Zūm Net device.
l
System sensors communicate digitally via Zūm Link. Non-system sensors
communicate via an analog connection on a Zūm Wired load controller.
