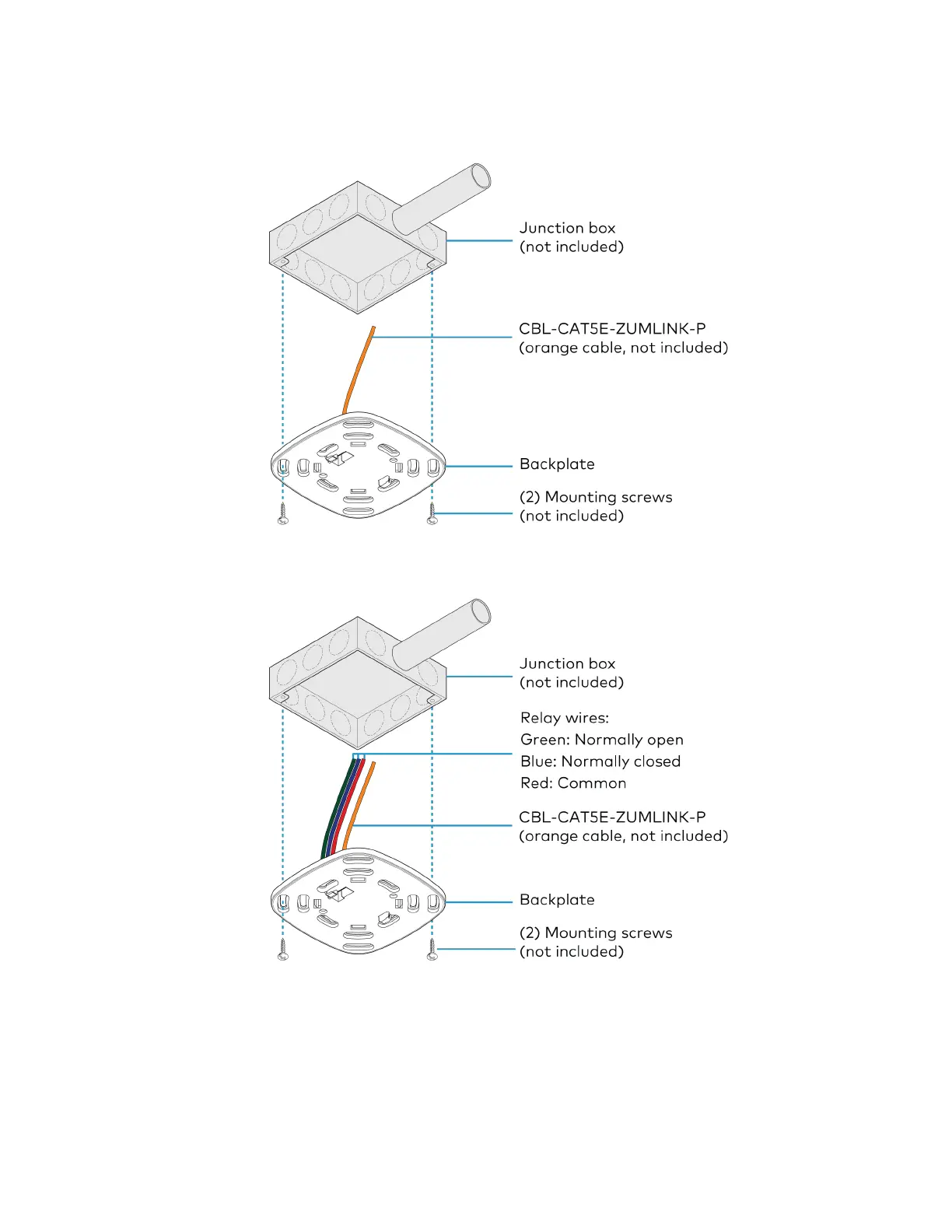

4. Feed the CBL-CAT5E-ZUMLINK-P cable through the junction box or mud ring, and connect
it to the Zūm Link Presence Detectors backplate.
For presence detectors with additional output relays, connect the relays to a relay-input
capable device before mounting the backplate to the junction box or mud ring.
Relay connection applicable for the following presence detectors:
l
ZUMLINK-IR-QUATTRO-DLS-RLY
l
ZUMLINK-DT-QUATTRO-DLS-RLY
