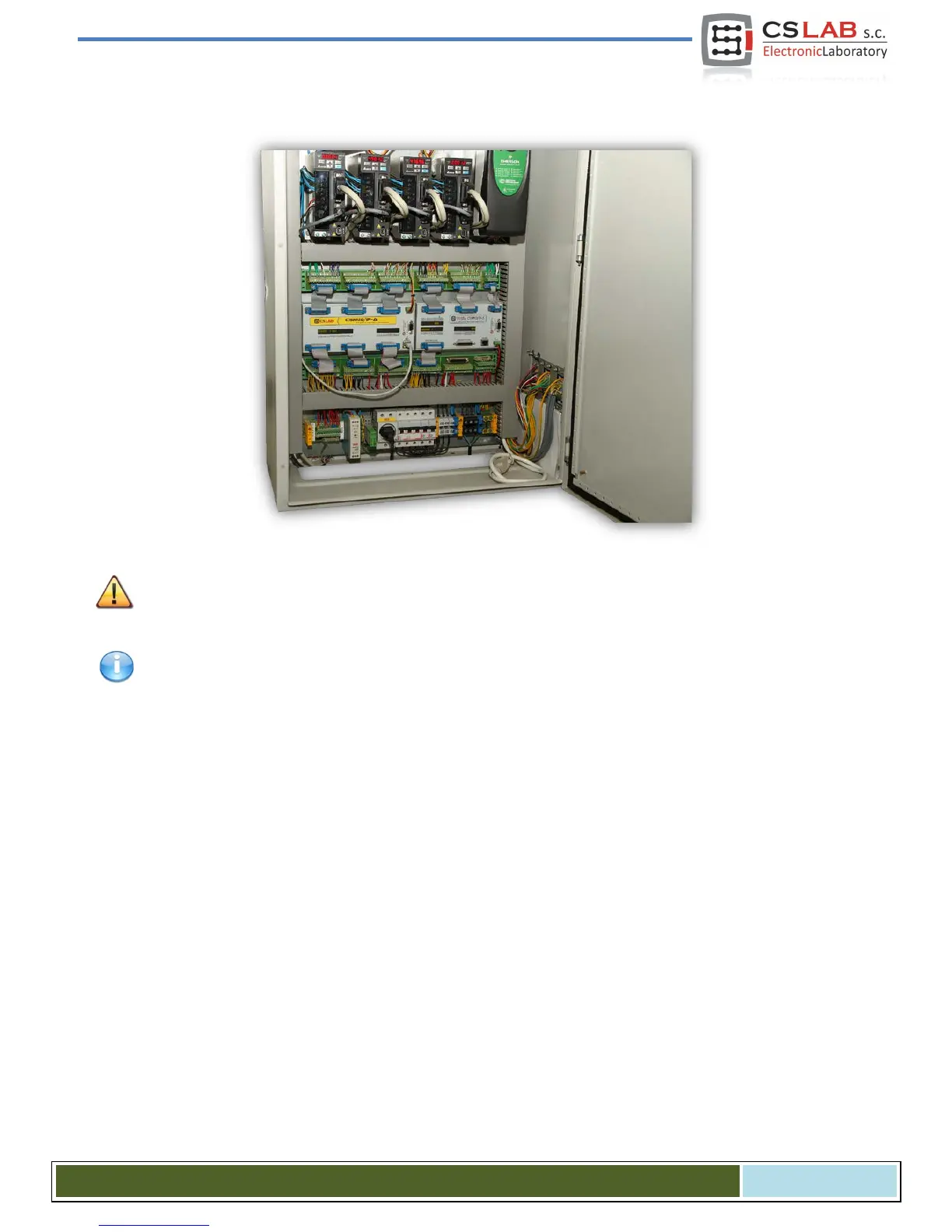

3.1.2 Control cabinet made by CS-Lab Company
Caution is advised during mechanical and electrical installation. Poorly tightened cable may cause many
problems it’s also very difficult to find such a defect while launching/using the system.
In the picture above there is also CSMIO/IP-S controller placed (right side). It is a picture of the control
cabinet we use for testing new firmware versions. The wiring is doubled so we can easily switch between
CSMIO/IP-A and IP-S models.
CS- Lab s.c. CSMIO/IP- A - CNC controller
Page 13
