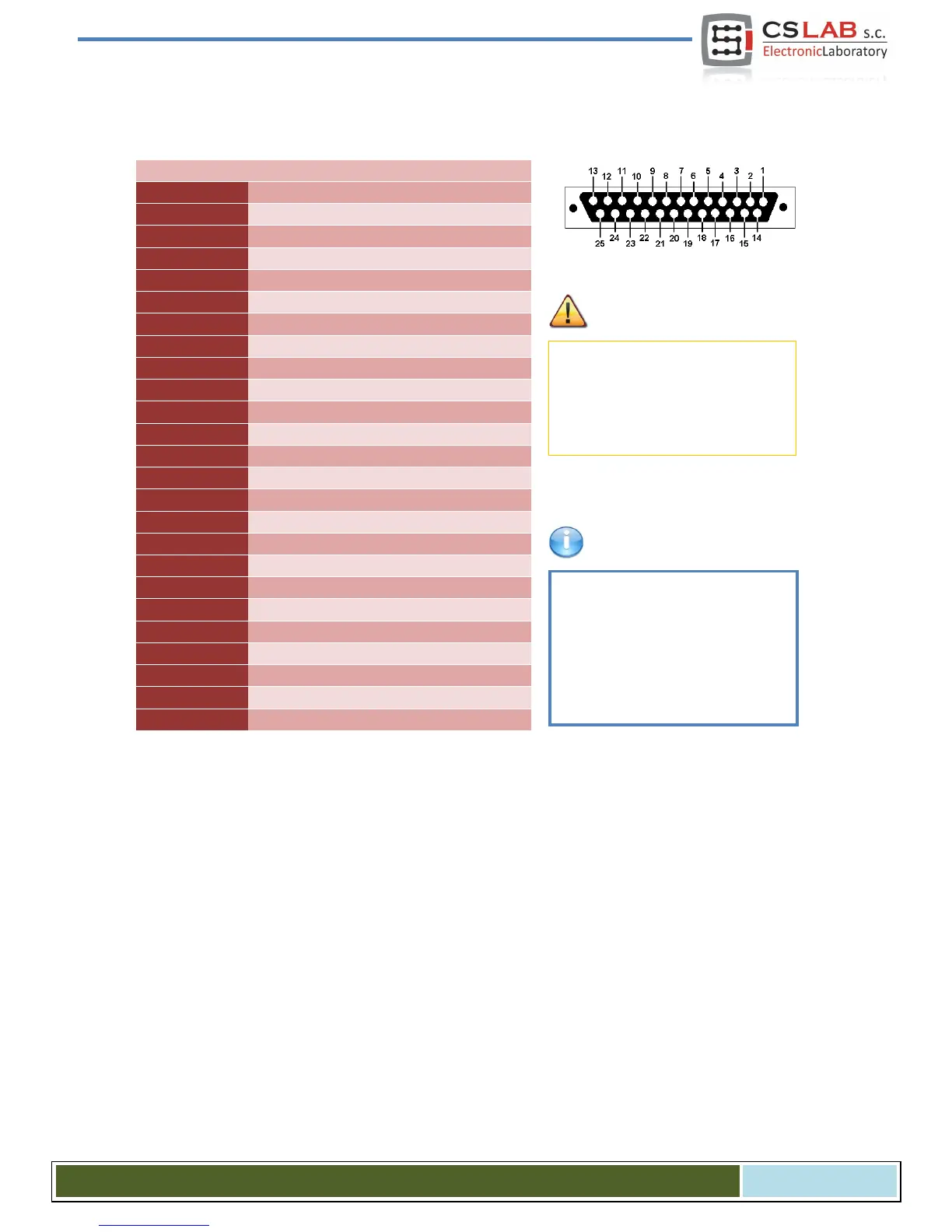

4.7 Digital outputs connector (0-15)
Oz
PIN number
Description
1
24V power supply for outputs: 0-3
2
Output 0
3
Output 2
4
24V power supply for outputs:4-7
5
Output 4
6
Output 6
7
24V power supply for outputs: 8-11
8
Output 8
9
Output 10
10
24V power supply for outputs: 12-15
11
Output 12
12
Output 14
13
GND (not used)
14
0V GND for outputs: 0-3
15
Output 1
16
Output 3
17
0V GND for outputs: 4-7
18
Output 5
19
Output 7
20
0V GND for outputs: 8-11
21
Output 9
22
Output 11
23
0V GND for outputs: 12-15
24
Output 13
25
Output 15
The outputs have 250mA load. You
must also pay attention to large in-
ductances if connected it is recom-
mended to use additional surge led,
preferablu as close to a coil.
In „Port&Pins” configuration of
Mach3 program the value in „Pin”
column does not mean a pin number
on CSMIO/IP connector but output
number.
So typing „9” mean output 9, and so
Pin 21 on CSMIO/IP connector.
CS- Lab s.c. CSMIO/IP- A - CNC controller
Page 27
