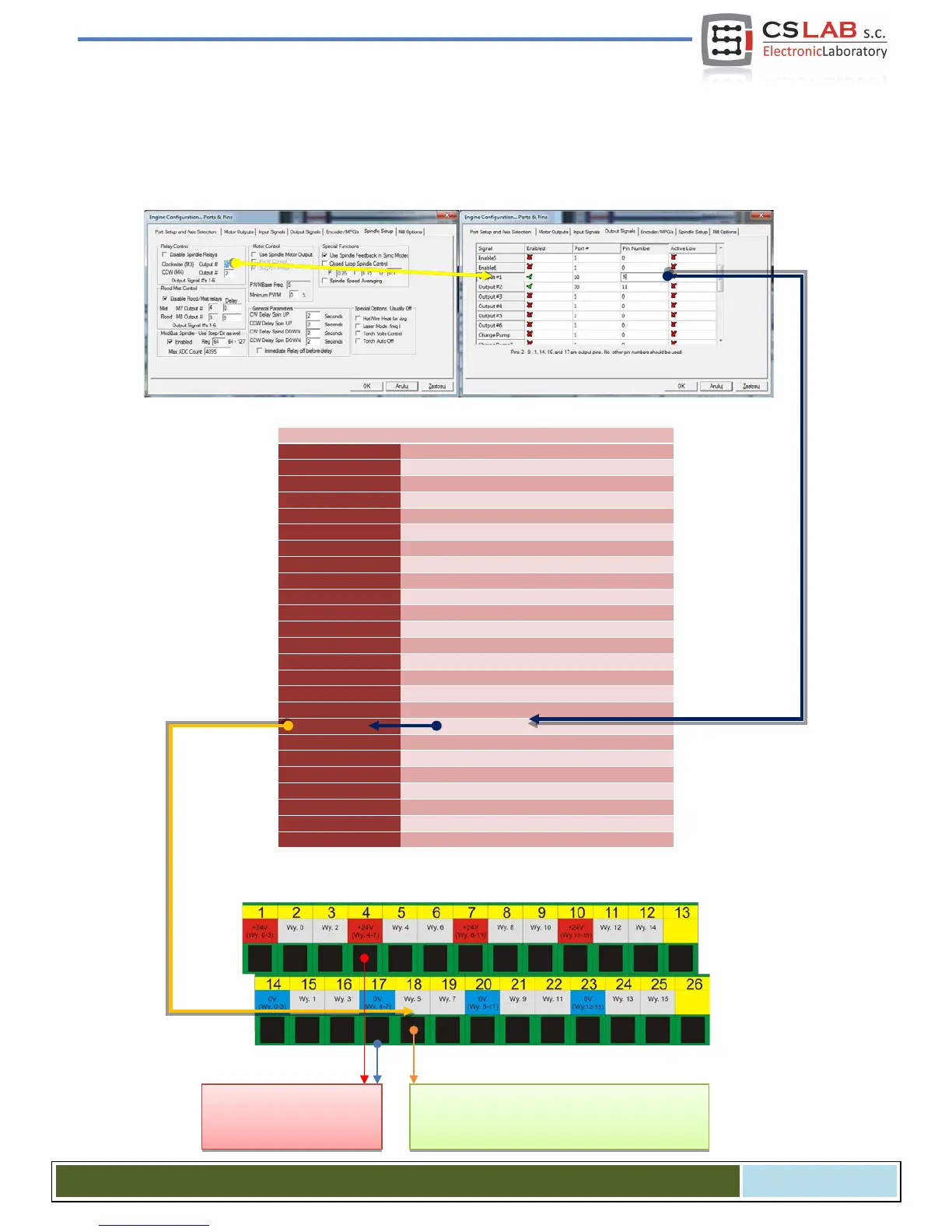

4.7.3 Example – spindle activation signal
In the example below, basing on configuration of outputs that activates the spindle (M3), we can see ex-
actly the following dependence:
[Mach3 program signal]  [CSMIO/IP signal]  [Pin on CSMIO/IP connector]
PIN number
Description
1
24V Power for 0-3 outputs
2
Output 0
3
Output 2
4
Power 24V for 4-7 outputs
5
Output 4
6
Output 6
7
Power 24V for 8-11 outputs
8
Output 8
9
Output 10
10
Power 24V for 12-15 outputs
11
Output 12
12
Output 14
13
GND (not used)
14
GND 0V for 0-3 outputs
15
Output 1
16
Output 3
17
GND 0V for 4-7 outputs
18
Output 5
19
Output 7
20
GND 0V for 8-11 outputs
21
Output 9
22
Output 11
23
GND 0V for 12-15 outputs
24
Output 13
25
Output 15
Power of outputs group
(4 – 7)
Output no. 5 CSMIO/IP
Controll signal (e.g. to an inverter)
