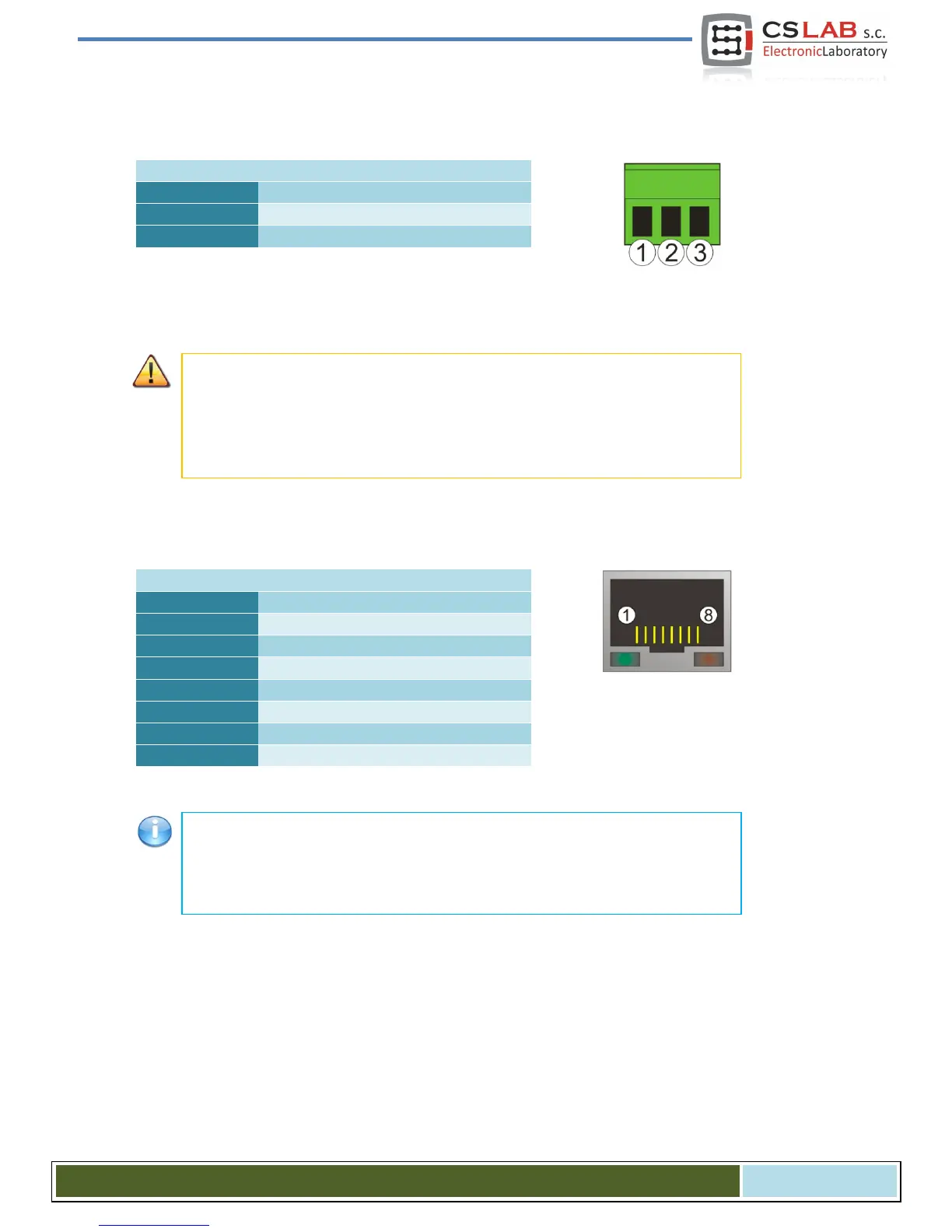

4.9 Power connector
4.10 Communication connector – Ethernet
It is recommended to use shielded cable FTP or STP cat.6.
A network interface has no Auto MDI-MDIX function. So when we connect
CSMIO/IP-S directly to a computer we should use so-called crossover cable. If you
connect it to the network switch or router - use a non-crossover cable.
View of the plug from the
side of connecting wires
Pay special attention to not exceed the permissible power voltage (30VDC). It
may cause damage of the device
If you use in the system such inductive loads as electromagnets, solenoids, elec-
tromagnetic clutches – it is recommended to use separate 24V power supply for
the mentioned receivers and separate for CSMIO / IP-S.
CS- Lab s.c. – CSMIO/IP- A - CNC controller
Page 31
